Plan 51-511

Photographs may show modified designs.
Plan 51-511

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Other Floor Plan

Reverse

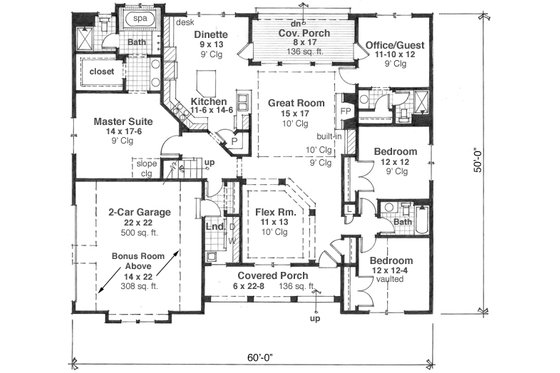

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 50'
Height : 25'
Width : 60'

Area

Total : 2202 sq/ft
Bonus: 308 sq/ft height 8'
First Floor: 2202 sq/ft height 9'
Garage: 500 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'
Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Trusses
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Play Flex Room
Unfinished Future Space

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Empty Nester

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bedroom 4:

141 sq/ft width 11' 10" x depth 12'

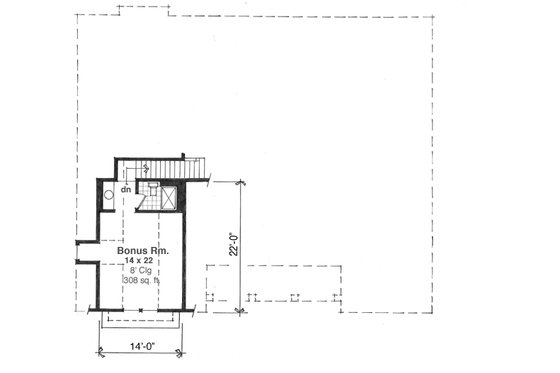

Bonus Room - Unfinished:

308 sq/ft width 14' x depth 22'

Dinette:

117 sq/ft width 9' x depth 13'

Flex Room:

143 sq/ft width 11' x depth 13'

Garage:

484 sq/ft width 22' x depth 22'

Great Room:

255 sq/ft width 15' x depth 17'

Kitchen:

166 sq/ft width 11' 6" x depth 14' 6"

Master Bedroom:

245 sq/ft width 14' x depth 17' 6"

Porch - Front:

136 sq/ft width 6' x depth 22' 8"

Porch - Rear:

136 sq/ft width 8' x depth 17'

What's included in this plan set


See a sample plan set
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1463.00
5 printed plan sets mailed to you.

8 Copy Set

$1738.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1760.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1837.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$2420.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1276.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Other Plans By This Designer

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
