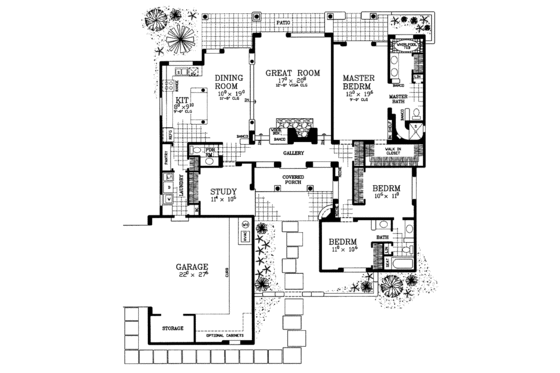

The great room, dining room and master bedroom all open to the covered patio that extends the width of this Southwestern home, offering plenty of space for relaxing and entertaining. The dining room is open to the kitchen with its window sink, large pantry and adjacent laundry room. From this side of the plan, a gallery leads from the powder room and study to the bedroom wing, where two secondary bedrooms share a connecting bath that has separate vanities. Opposite these bedrooms, the master suite includes a walk-in closet and a compartmented bath with a whirlpool tub.
