Simple layouts can be upscale and luxurious, too. This one shows how it's done, with a straightforward footprint that will be easy to build, but also lots of special details throughout, like ceiling treatments, skylight, and storage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

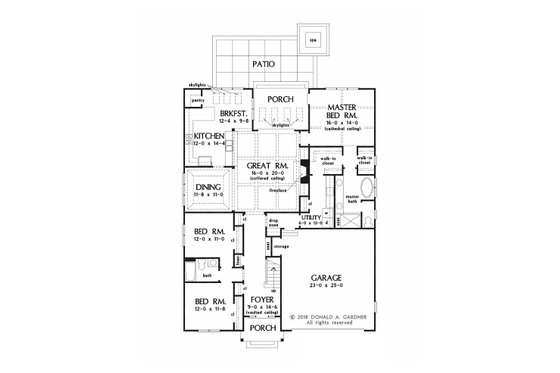

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 62' 10"
Height : 28' 6"
Bonus : 456 sq/ft
Garage : 603 sq/ft
Main Floor : 2111 sq/ft
Porch : 199 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bonus Ceiling : 9'
Main Ceiling : 9'
Primary Pitch : 7/12
Roof Framing : Stick/Conventional
Roof Load : Live 20 psf / dead 15 psf / Wind 115 mph
Roof Type : Asphalt/Metal
Exterior Wall Framing
Exterior Wall Finish : Board & Batten with Brick
Framing : 2x4
Insulation : Ext Wall: R-13 / Ceiling: R-30 / Floor: R-19
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
width 12' x depth 11'
width 12' x depth 11' 8"
width 12' x depth 12' 6"
width 18' x depth 21' 6"
width 12' 4" x depth 9' 8"
width 11' 8" x depth 11'
width 9' x depth 14' 6"
width 23' x depth 25'
width 16' x depth 20'
width 12' x depth 14' 4"
width 16' x depth 14'
width 6' x depth 13'
What's included in this plan set
See a sample plan set
*See important information before purchasing
Donald A. Gardner charges $99.00 to review plan changes and prepare an estimate for your modifications.
This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote from the Donald A. Gardner Plan Collection.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
Cover Sheet - A rendering of the front exterior of the house.
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
