Plan 1058-11

Photographs may show modified designs.
Plan 1058-11

Plan Description


Wow! This splendid home is built around a courtyard, giving great views to every room. Enter the house from the motorcourt (with split garage space for four cars) and step into the foyer. From here, a wall of French doors gives you a gorgeous vista of the pool and extensive loggias. To the left, everyone can relax in the family room, open kitchen, and circular breakfast nook. More formal reception happens in the "sala" and dining room, each boasting a fireplace. Kids will love the game room and wet bar. Clear across the courtyard, the owner's retreat has the wing to itself: a sitting room, fireplace, two big closets, and great bathroom (with two water closets) surround you with comfort. A detached guest suite sits next to the veranda and near the exercise room. Three more bedroom suites rest upstairs.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

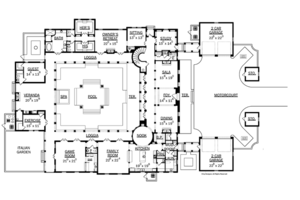

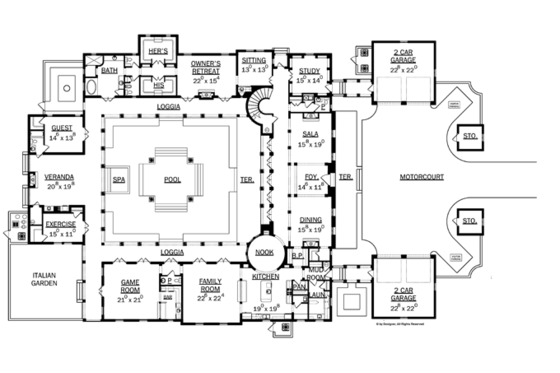

Floor Plan - Main Floor Plan

Reverse

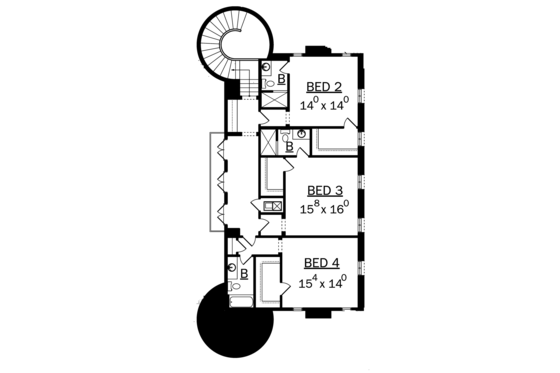

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 5
Stories: 2
Garages: 4

Dimension

Depth : 160' 4"
Height : 33'
Width : 109'

Area

Total : 7340 sq/ft
First Floor: 5911 sq/ft height 12'
Garage: 1152 sq/ft
Porch: 2193 sq/ft
Second Floor: 1429 sq/ft height 10'
Storage: 200 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Mud Room
Wine Cellar

Garage Features

Detached Garage

Outdoor Spaces

Balcony
Courtyard
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Fireplace
Outdoor Kitchen Grill

Rooms

Bedroom 2:

width 14' x depth 14'

Bedroom 3:

width 15' 8" x depth 16'

Bedroom 4:

width 15' 4" x depth 14'

Dining:

width 15' 8" x depth 19'

Exercise Room:

width 15' x depth 11'

Family Room:

width 22' 6" x depth 22' 4"

Foyer:

width 14' 6" x depth 8'

Game Room:

width 21' x depth 21'

Garage:

width 22' 8" x depth 22'

Garage 2:

width 22' 8" x depth 22'

Guest Suite:

width 14' 6" x depth 13' 8"

Kitchen:

width 19' x depth 19' 8"

Master Bedroom:

width 22' x depth 15' 4"

Sala:

width 15' 8" x depth 19'

Sitting Area:

width 13' x depth 13'

Study:

width 15' x depth 14'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$4375.00
5 printed plan sets mailed to you.

CAD Set

$4665.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$4665.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options

Slab

$250.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
