Plan 496-23

Photographs may show modified designs.
Plan 496-23

Key Specs


2875
sq ft

4
Beds

2.5
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2.5
Stories: 1
Garages: 2

Dimension

Depth : 42'
Height : 15'
Width : 102'

Area

Total : 2875 sq/ft
Garage : 134 sq/ft
Main Floor : 2875 sq/ft
Patios : 85 sq/ft
Porch : 14 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Exterior Wall Framing

Framing : CMU

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Courtyard
Covered Front Porch
Grill Deck Sundeck

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set
All plans are designed in metric measurements

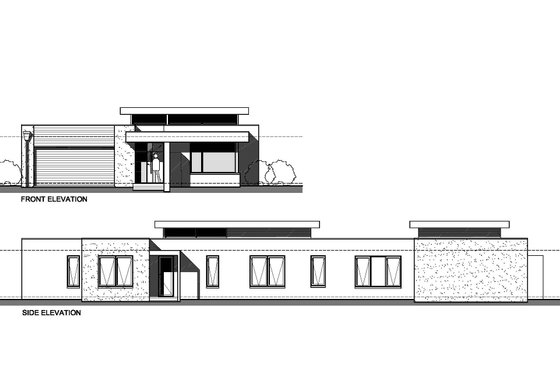

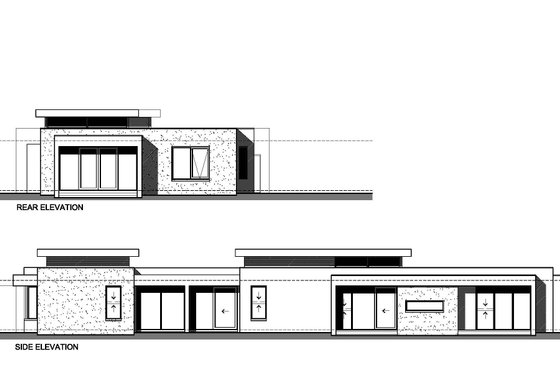

  • Exterior Elevations: Drawn to 1:50 metric scale. A blueprint picture of all four sides showing exterior materials and measurements.

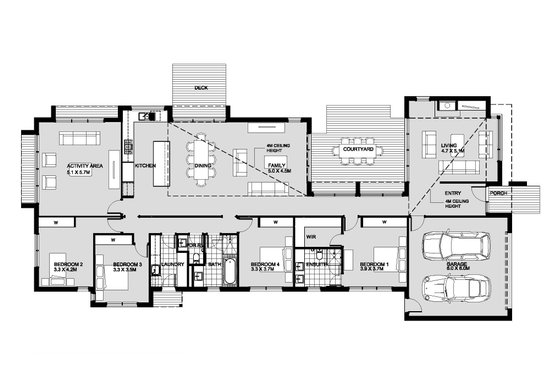

  • Floor Plan(s): Detailed plans, drawn to 1:50 metric scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section(s): Drawn to 1:100 metric scale showing vertical cutaway view(s) of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Typical Wall Details: Drawn to 1:10 metric scale.
  • Window Details: Drawn to 1:50 metric scale. This page details window design and details
  • Note: This plan does not have a foundation plan. The foundation will need to be designed by a local professional, who is familiar with your site and local requirements.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1600.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$1600.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1600.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$3600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Meet the Designer - Leon Meyer

Leon Meyer - Houseplans.com
“Leon Meyer Architects focuses on creative and innovative architectural design. A strong contemporary approach is maintained with an emphasis on passive solar, and environmentally responsible design. We maintain a high level of commitment to ensuring that designs are carefully considered, fully resolved, and supported by accurate detailing and comprehensive documentation.”

Based in the cosmopolitan inner suburban area of South Melbourne, Leon Meyer Architects is a small and industrious architectural practice, with a substantial reputation for creating, quality, contemporary, residential architecture in both the metropolitan and rural settings.

The Practice embraces a variety of aesthetic approaches in building form and detail, underpinned by a strong focus on spatial planning and functional design. Quality of light, spatial efficiency and flexibility, are fundamental design principles adhered to and clearly evident in the houses created by the Practice. The emphasis on zoning, spatial flow, sustainability and versatility ensures that buildings designed by Leon Meyer Architects are in significant demand.

The work has won numerous awards within the Building Industry in Australia and the Principal Architect, Leon Meyer, enjoys wide recognition through his reputation for an absolute commitment to consistently achieving the highest quality of Architectural Design.
