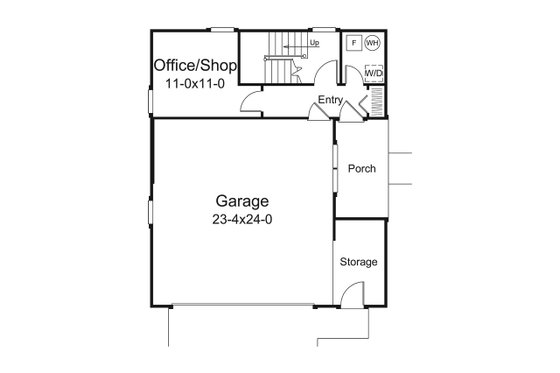

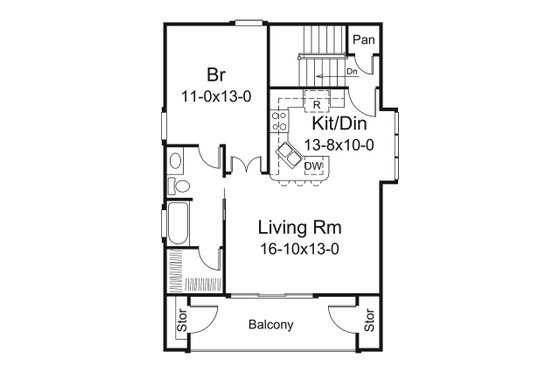

This oversized garage has an extra wide 18' door and spacious entry with a storage area. The large side covered porch invites you into the entry hall featuring a coat closet, a room for an office or shop, a mechanical room and a staircase to living area above. The second floor living room, with a 9' sliding door to a covered outdoor balcony, is open to a U-shaped kitchen with a dining bay, a built-in pantry and a snack counter. The compartmented bath has a walk-in closet and adjoins the bedroom which features double entry doors.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
