Enter this spacious Great Room with three full-length windows to ensure
maximum natural lighting. The Kitchen/Dining is fully loaded with a
movable Island, snack bar, pantry, and lots of cabinets. The Master
Bedroom is nice-sized, has a private bath and a great walk-in closet.
Bedroom 2 is perfect for extra room and a great walk-in closet. Bath #
2 is ideally located for guests that come to relax in the Great Room.
There is a great Laundry room with a covered porch off the side to give
a nice balance of work and play.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

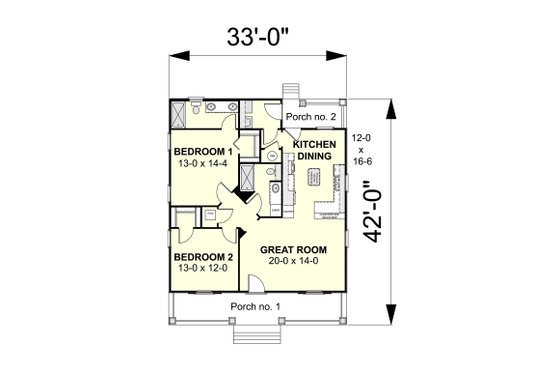

Floor Plan - Main Floor
Full Specs & Features
First Floor: 1122 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : gable
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : shingle siding
Framing : 2"x4"
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
Economical To Build
Suited For Vacation Home
Structural Information Provided
80 sq/ft width 8' x depth 10'
156 sq/ft width 13' x depth 12'
280 sq/ft width 20' x depth 14'
198 sq/ft width 12' x depth 16' 6"
45 sq/ft width 8' x depth 5' 8"
73 sq/ft width 13' x depth 5' 8"
186 sq/ft width 13' x depth 14' 4"
Porch - Front:
181 sq/ft width 33' x depth 5' 6"
Porch - Rear:
66 sq/ft width 12' x depth 5' 6"
