Craftsman House Plan 513-2054 1132 sq ft, 3 bed, 2.5 bath, 2 floor, 0 garage

Name: Craftsman Style House Plan - 3 Beds 2.5 Baths 1132 Sq/Ft Plan #513-2054
Brand: Houseplans.com
SKU: 513-2054
Price: 925.00 USD
Availability: InStock

Key Specs

1132
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$295.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$925.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Craftsman

Craftsman House Plan 513-2054 1132 sq ft, 3 bed, 2.5 bath, 2 floor, 0 garage

Key Specs

1132
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

Plan Description

This craftsman design floor plan is 1132 sq ft and has 3 bedrooms and 2.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

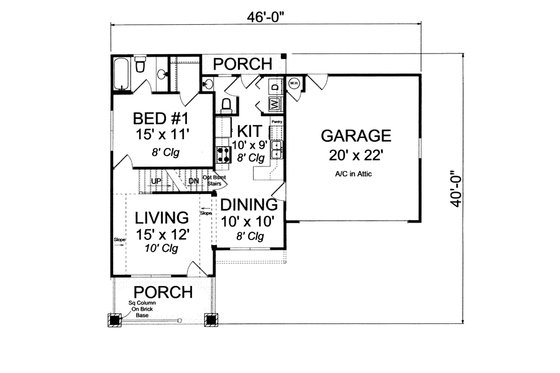

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

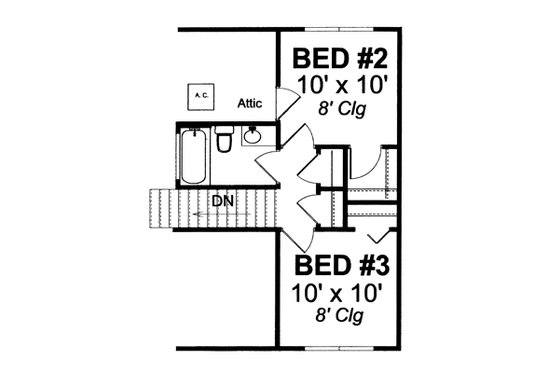

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2.5

Stories: 2

Garages: 0

Dimension

Depth : 40'

Height : 23'

Width : 46'

Area

Total : 1132 sq/ft

First Floor: 779 sq/ft

Garage: 440 sq/ft

Second Floor: 353 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Roof Trusses

Roof Load : 30/20

Roof Type : Roof Trusses

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Additional Room Features

Great Room Living Room

Main Floor Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bathroom 2:

41 sq/ft width 8' 4" x depth 5'

Bedroom 1:

165 sq/ft width 15' x depth 11'

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Dining Room:

100 sq/ft width 10' x depth 10'

Garage:

440 sq/ft width 20' x depth 22'

Half Bathroom:

25 sq/ft width 5' x depth 5'

Kitchen:

90 sq/ft width 10' x depth 9'

Living Room:

180 sq/ft width 15' x depth 12'

Master Bathroom:

42 sq/ft width 8' 2" x depth 5' 2"

Master Closet:

22 sq/ft width 4' 4" x depth 5' 2"

Utility Room:

16 sq/ft width 3' x depth 5' 6"

What's included in this plan set

See a sample plan set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

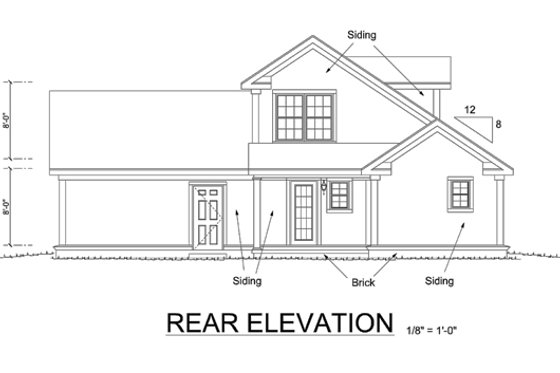

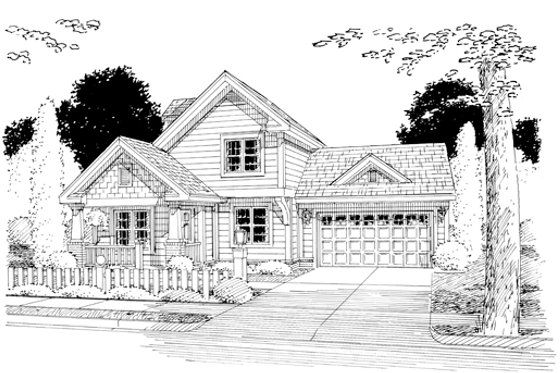

Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.

Pricing

Plan Options

PDF Unlimited Build

$925.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$1220.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement

$195.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$195.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

Wood 2x6

$195.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
