Plan 936-17

Photographs may show modified designs.
Plan 936-17

Key Specs


1138
sq ft

3
Beds

2
Baths

1
Floors

0
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

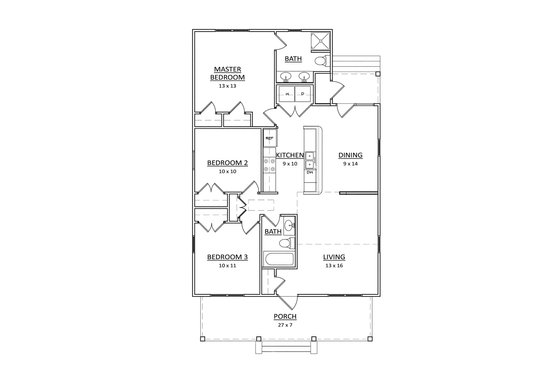

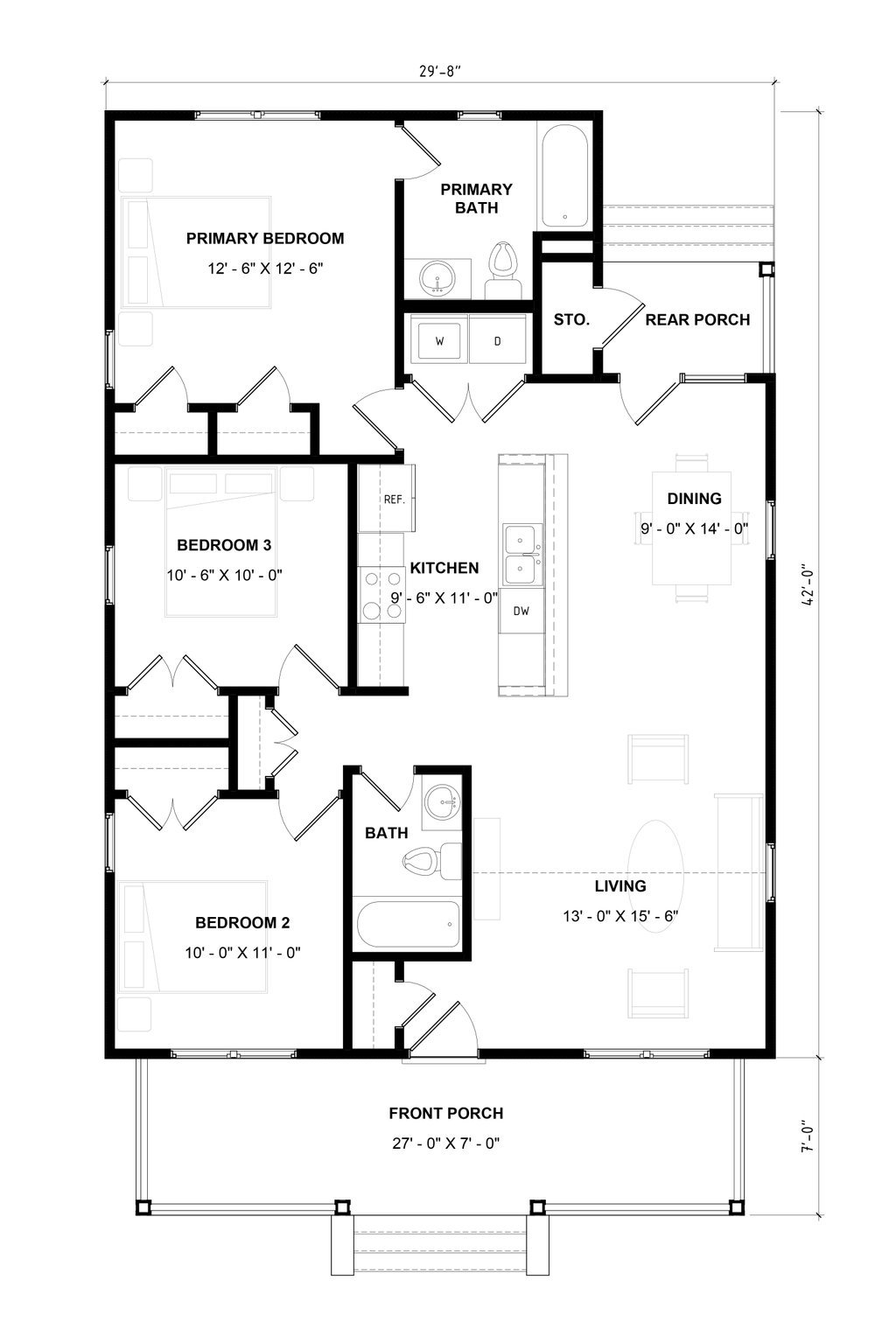

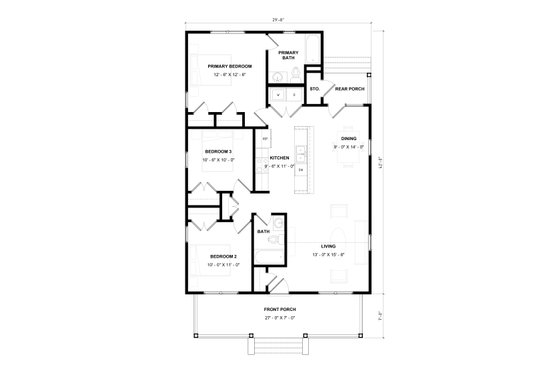

Floor Plan - Main Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 0

Dimension

Depth : 49'
Height : 19' 9"
Width : 29' 6"

Area

Total : 1138 sq/ft
First Floor: 1138 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4

Bedroom Features

Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Main Floor Laundry
Open Floor Plan
Storage Area

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

width 10' x depth 10'

Bedroom 3:

width 10' x depth 11'

Dining:

width 9' x depth 14'

Kitchen:

width 9' x depth 10'

Living Room:

width 13' x depth 16'

Master Bedroom:

width 13' x depth 13'

Porch Front:

width 27' x depth 7'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

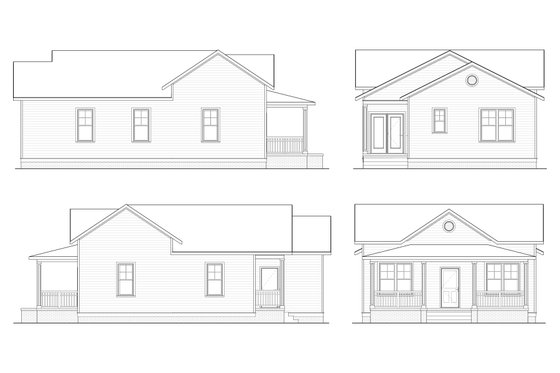

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
