Plan 112-176
Photographs may show modified designs.
Home  >  Style  >  Beach

Beach House Plan 112-176

Key Specs


Plan Sq Ft

1202
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$295.00
Additional Construction Sets$75.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$165.00
$295.00
$39.00
$165.00
Subtotal
$900.00
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1202
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

3
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Plan Description


- Simple roof lines add to the grace of this timeless beauty. - An over-sized garage includes a full bath and can also serve as a shop and storage. - The open kitchen is highly functional and also includes a pantry. - Vaulted ceilings are enhanced by transom windows spanning from the great room to the Kitchen. - The primary bedroom features it’s own private bathroom along with a walk-in closet. - A stacking washer and dryer is located in a closet. - A secondary bedroom is served by a bathroom nearby.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

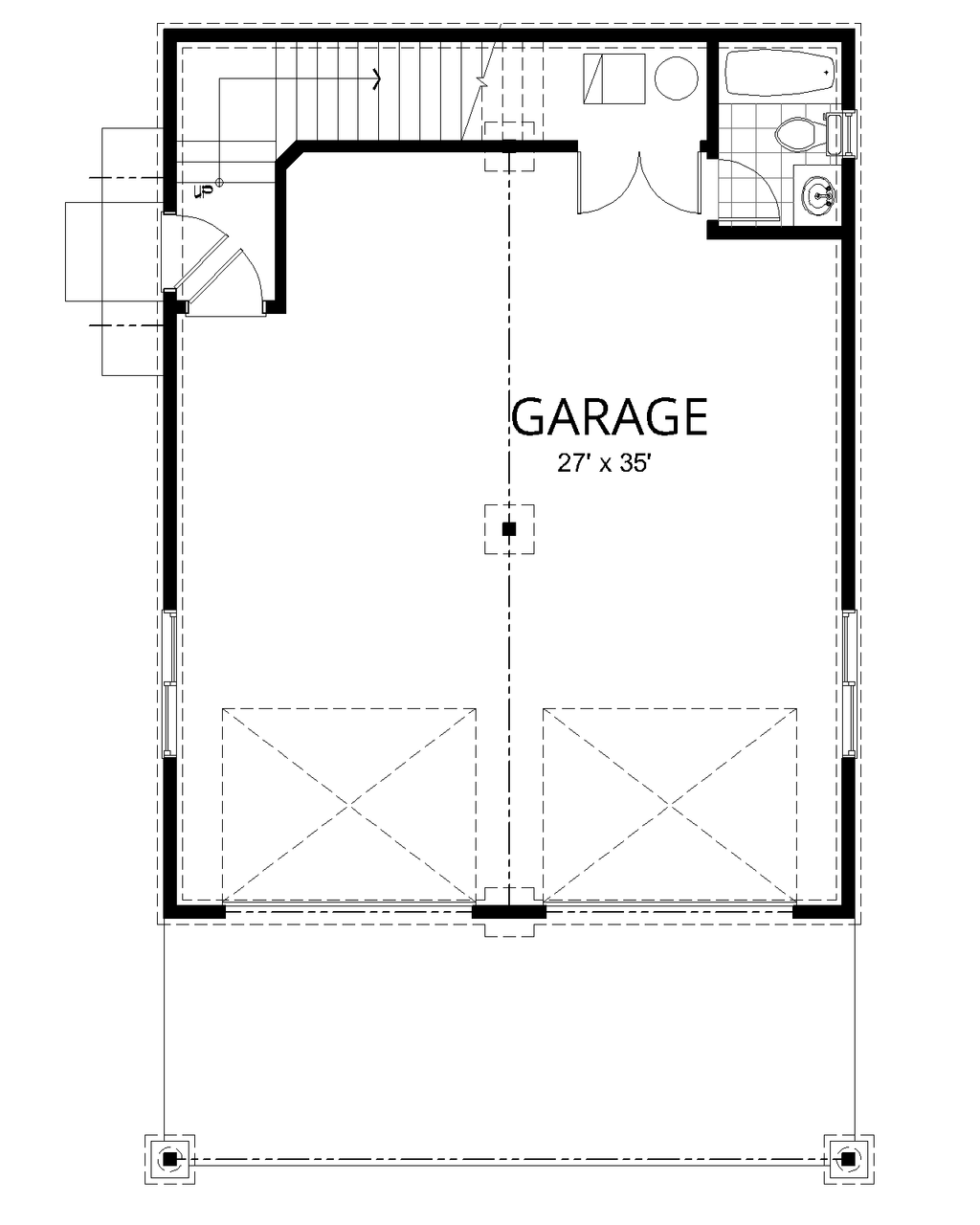

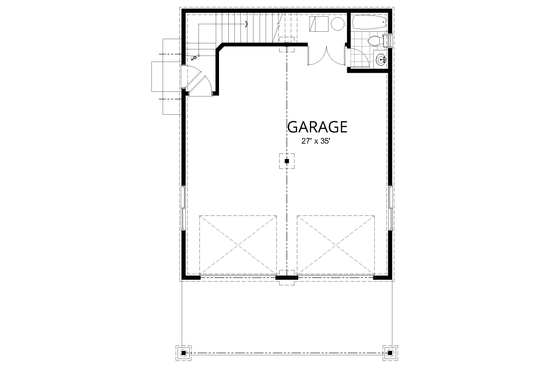

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

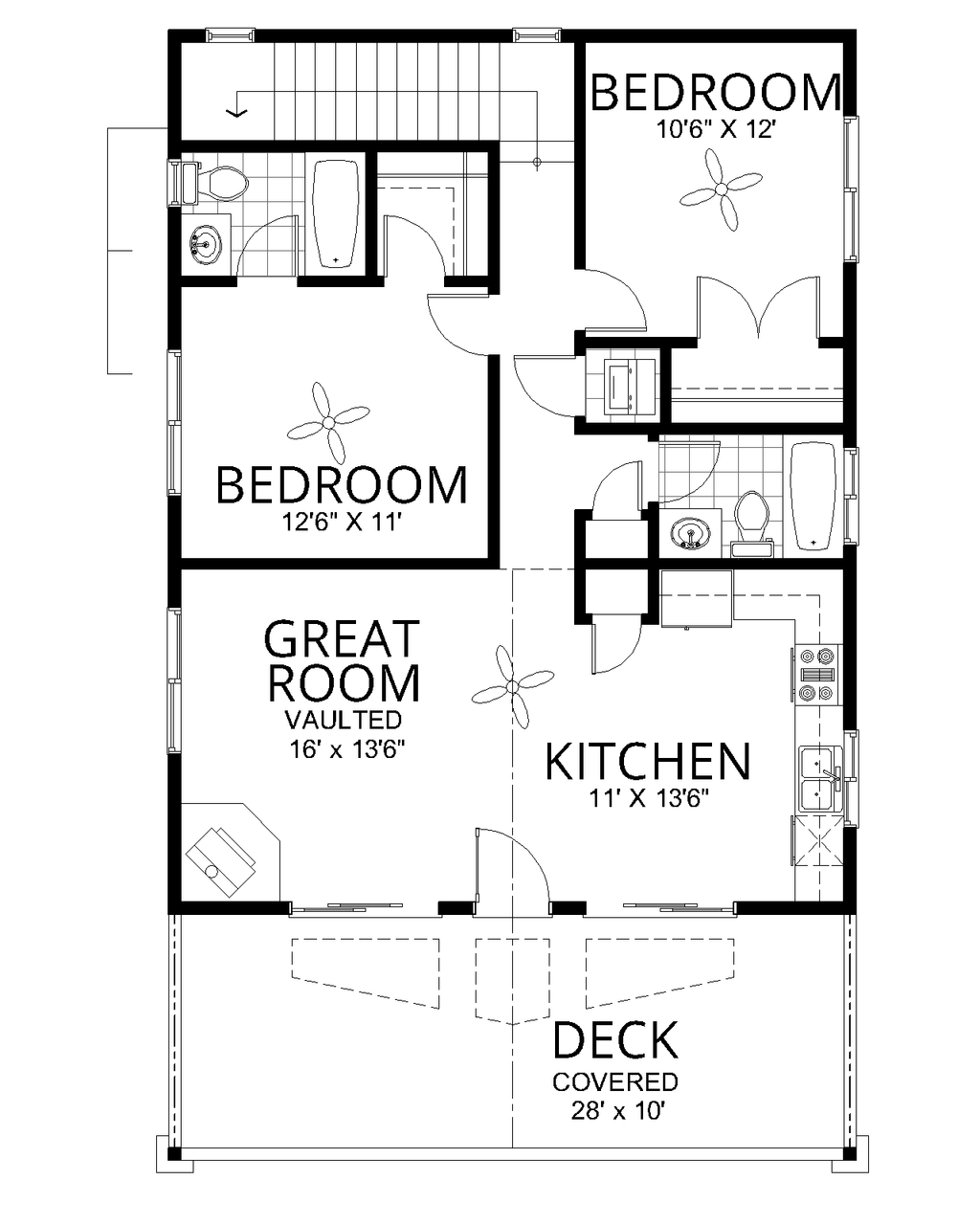

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 2
Baths : 3
Stories: 2
Garages: 2

Dimension

Depth : 46'
Height : 24' 6"
Width : 28'

Area

Total : 1202 sq/ft
Decks : 280 sq/ft
Garage : 814 sq/ft
Main Floor : 1008 sq/ft
Porch : 16 sq/ft
Upper Floor : 1008 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Living area ceiling vaults from 8'-0" at the wall to 10-4" at the interior ridge
Garage Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 4/12
Roof Framing : Roof Trusses
Roof Load : 40 L.L. /15 D.L.
Roof Type : Standard/Scissor

Exterior Wall Framing

Exterior Wall Finish : Lap siding, Shakes, Stone
Framing : 2x6
Insulation : R-21

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Additional Room Features

Great Room Living Room
Storage Area
Upstairs Laundry
Workshop

Garage Features

Front Entry Garage
Garage Under

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck

More

Economical To Build
Empty Nester
Suited For Vacation Home

What's included in this plan set


See a sample plan set
    Exterior Elevations:
    • Front, Rear, and Side Elevations
    • Scale 1/4" = 1'-0"
    • Roof Slopes
    Floor Plans:
    • Scale 1/4" = 1'-0"
    • All Dimensions and Post Locations
    • Beam and Header Sizes
    • Door and Window Sizes
    • Ceiling Details
    • Floor & Deck Joist Size & Spacing
    • Notes Pertaining to Code Requirements
    • Mechanical & Plumbing Locations
    • Electrical Layout
    • Square Footage of Floor Area, Garage, Decks, and Patios
    Foundation Plan:
    • Scale 1/4" = 1'-0"
    • All Dimensions and Post Locations
    • All Foundation Wall and Footing Sizes
    • Beam and Header Sizes
    • Door and Window Sizes
    • Floor & Deck Joist Sizes & Spacing
    • Notes Pertaining to Code Requirements
    • Mechanical & Plumbing Locations
    • Electrical Layout
    Roof Framing Plan:
    • Scale 1/4" = 1'-0"
    • All Framing Members Type and Size
    • All Beam & Header Sizes & Locations
    • Truss Hangers
    • Roof Lines, Ridges, Valleys, & Hips
    • Notes Pertaining to Code Requirements
    • Over-Framed or Over-Build Areas
    • Girder and Hip Master Truss Locations
    • Raised and Lowered Plate Heights
    Building Sections:
    • Scale 1/4" = 1'-0"
    • Roof Trusses and Rafter Framing
    • Beam Connections and Locations
    • Special Framing Details
    • Plate Heights and Foundation Wall Heights
    • Roof Slopes and Construction Materials
    • Structural Members
    Braced Wall Panel Plans: May Require Local Engineering
    • Scale 1/4" = 1'-0"
    • Braced Panel Locations
    • Alternate Braced Panel Locations
    • Engineered Panel Locations
    • Alternate Braced Panel Details
    • Braced Panel Notes and Tables
    Wall Sections:
    • Scale 1/2" = 1'-0"
    • All Materials and Construction Notes
    • Insulation Requirements
    Stair Detail:
    • Scale 1/2" = 1'-0"
    • Section Through Stairway
    • Notes Pertaining to Code Requirements
    • Floor to Floor Heights
    • Rise and Run Dimensions
    Cabinet Elevations:
    • Scale 3/8" = 1'-0"
    • Dimensions and Details of All Cabinets
    • Notes: Nailing Schedule, Radon Notes, Structural Design Loads, Abbreviations, Truss Notes Electrical Symbol Key, & Insulation Notes
* See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$900.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set

$1150.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

CAD Single Build

$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Unlimited Build

$1650.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$2000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00
Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00
Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
