Plan 84-540

Photographs may show modified designs.
Plan 84-540

Key Specs


1235
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


Good plan for either a starter home or empty-nester, this home has generous closets & easy to furnish rooms. Traditional elevation can easily be dressed up with shutters or brick accents.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

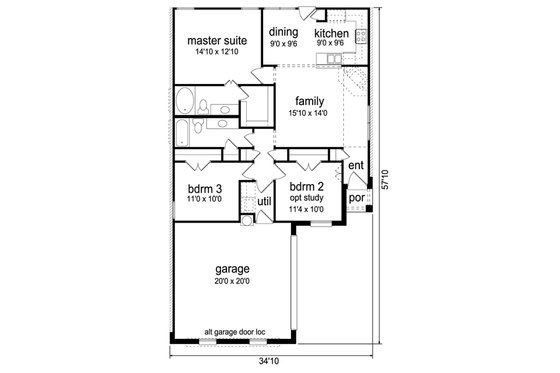

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 57' 10"
Height : 17' 2"
Width : 34' 10"

Area

Total : 1235 sq/ft
First Floor: 1235 sq/ft height 9'
Garage: 442 sq/ft height 9'
Porch: 18 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 8'
Main Ceiling : 8'

Roof

Primary Pitch : 6:12
Roof Framing : stick
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : brick
Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry

Garage Features

Front Entry Garage
Side Entry Garage

Outdoor Spaces

Covered Front Porch

More

Economical To Build

Code Compliance

Irc 2003

Rooms

Bedroom 2:

113 sq/ft width 11' 4" x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Dining Room:

85 sq/ft width 9' x depth 9' 6"

Family Room:

221 sq/ft width 15' 10" x depth 14'

Garage:

400 sq/ft width 20' x depth 20'

Kitchen:

85 sq/ft width 9' x depth 9' 6"

Master Suite:

190 sq/ft width 14' 10" x depth 12' 10"

What's included in this plan set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

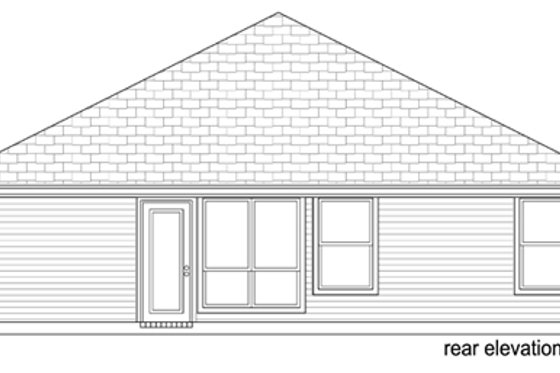

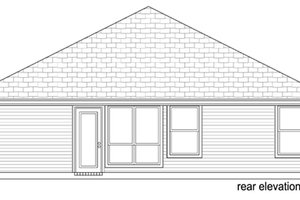

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$750.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$800.00
5 printed plan sets mailed to you.

8 Copy Set

$900.00
8 printed plan sets mailed to you.

Reproducible Set

$900.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1400.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$625.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Right-Reading Reverse

$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
