Craftsman Style House Plan - 3 Beds 2 Baths 1253 Sq/Ft Plan #513-2106 Exterior - Front Elevation

Plan 513-2106

Photographs may show modified designs.

Select Plan Set Options What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$100.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$945.00

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Questions?

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours Mon‑Fri, 9 am‑8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

Plan 513-2106

Key Specs

1253
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

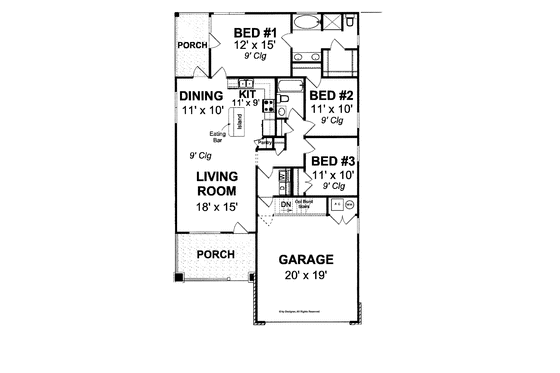

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 2

Dimension

Depth : 59'

Height : 20'

Width : 35'

Area

Total : 1253 sq/ft

First Floor: 1253 sq/ft

Garage: 472 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Formal Living Room / Parlor

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

37 sq/ft width 7' 6" x depth 5'

Bedroom 2:

110 sq/ft width 11' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Dining Room:

110 sq/ft width 11' x depth 10'

Front Porch:

134 sq/ft width 15' 4" x depth 8' 9"

Garage:

380 sq/ft width 20' x depth 19'

Kitchen:

99 sq/ft width 11' x depth 9'

Kitchen Island:

16 sq/ft width 5' 6" x depth 3'

Living Room:

283 sq/ft width 18' x depth 15' 9"

Master Bathroom:

112 sq/ft width 9' x depth 12' 6"

Master Bedroom:

180 sq/ft width 12' x depth 15'

Master Closet:

32 sq/ft width 5' x depth 6' 6"

Pantry:

4 sq/ft width 2' x depth 2'

Rear porch:

79 sq/ft width 6' 6" x depth 12' 2"

Utility Room:

32 sq/ft width 5' 2" x depth 6' 4"

What's included in this plan set

See a sample plan set

Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
Interior Elevations: Kitchen cabinet elevations are drawn.
Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.

Pricing

Plan Options

PDF Set

Best Value!

$945.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1240.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Slab

$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement

$195.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$195.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x4

$0.00

Wood 2x4

Wood 2x6

$195.00

Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
