Plan 58-128

Photographs may show modified designs.
Plan 58-128

Key Specs


1271
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

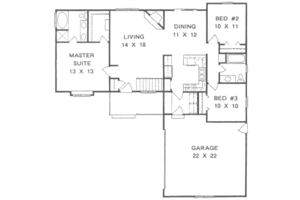

Floor Plan - Main Floor Plan

Reverse

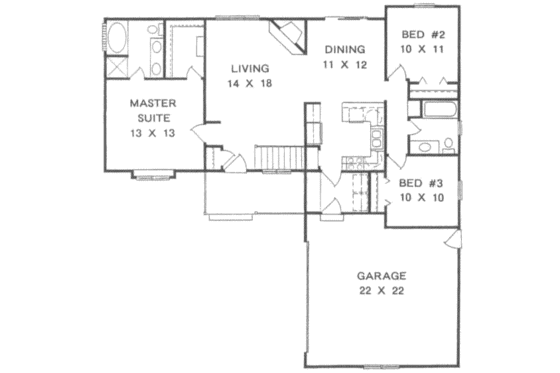

Ranch Floor Plan - Main Floor Plan Plan #58-128

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 52'
Height : 18'
Width : 50'

Area

Total : 1271 sq/ft
Basement Unfinished: 1170 sq/ft height 8'
First Floor: 1271 sq/ft height 8'
Garage: 484 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4

Bedroom Features

Split Bedrooms
Walk In Closet

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Empty Nester

Rooms

Bedroom 2:

110 sq/ft width 10' x depth 11'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Dining Room:

132 sq/ft width 11' x depth 12'

Garage:

484 sq/ft width 22' x depth 22'

Living Room:

252 sq/ft width 14' x depth 18'

Master Suite:

169 sq/ft width 13' x depth 13'

What's included in this plan set


See a sample plan set
Each set of plans include:
  • 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
  • 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
  • 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
  • Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
  • Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
  • Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
  • Building Cross Section - Complete front to back cross section with basic framing details.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$695.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$795.00
5 printed plan sets mailed to you.

Reproducible Set

$795.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
