Plan 46-416

Photographs may show modified designs.
Plan 46-416

Key Specs


1309
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


The central living area of this home combines the kitchen, dining area and great room into a large, open entertaining space. A wood burning fireplace, and 10' ceiling height decorate the great room while an island with seating defines the kitchen area and sliding doors from the dining area offer a great view to the rear yard. The ceiling drops to 8' through the kitchen and dining space and remains that height through the remainder of the home. Split bedrooms offer privacy to guests and a full basement provides storage or can be finished for additional living space. A rustic contemporary style of this home makes it a perfect choice for your vacation home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

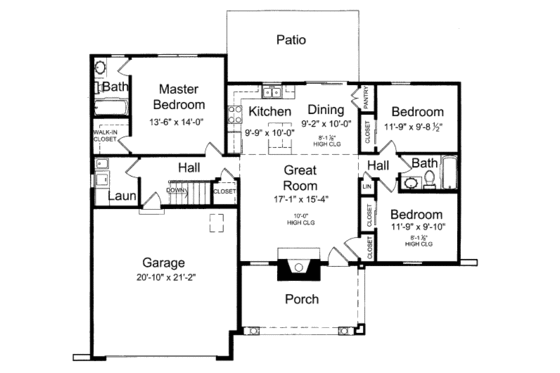

Floor Plan - Main Floor Plan

Reverse
Traditional Floor Plan - Main Floor Plan Plan #46-416

Floor Plan - Lower Floor Plan

Reverse
Traditional Floor Plan - Lower Floor Plan Plan #46-416

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 43' 6"
Height : 19' 11"
Width : 53' 4"

Area

Total : 1309 sq/ft
Basement Unfinished: 1309 sq/ft
First Floor: 1309 sq/ft
Garage: 433 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2"x4"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Unfinished Future Space

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

116 sq/ft width 11' 9" x depth 9' 11"

Bedroom 2 Closet:

10 sq/ft width 2' 1" x depth 5'

Bedroom 3:

114 sq/ft width 11' 9" x depth 9' 9"

Bedroom 3 Closet:

12 sq/ft width 2' 4" x depth 5' 6"

Covered Porch:

177 sq/ft width 17' 9" x depth 10'

Dining Room:

91 sq/ft width 9' 2" x depth 10'

Garage:

440 sq/ft width 20' 10" x depth 21' 2"

Kitchen:

97 sq/ft width 9' 9" x depth 10'

Laundry Room:

50 sq/ft width 7' 11" x depth 6' 4"

Linen Closet:

4 sq/ft width 2' 1" x depth 2' 1"

Master Bathroom:

42 sq/ft width 5' x depth 8' 5"

Master Bedroom:

189 sq/ft width 13' 6" x depth 14'

Master Closet:

26 sq/ft width 5' x depth 5' 3"

Pantry:

8 sq/ft width 2' 1" x depth 3' 11"

Porch - Front:

177 sq/ft width 17' 9" x depth 10'

What's included in this plan set


See a sample plan set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section shows typical framing detail of house.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$850.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$850.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

5 Copy Set

$900.00
5 printed plan sets mailed to you.

CAD Set

$1320.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$350.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement

$350.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$115.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$75.00
A list of building supplies needed to construct the infrastructure of your new house.

Mirror Reversed Sets

$25.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
