Plan 515-21

Photographs may show modified designs.
Plan 515-21

Key Specs


1332
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

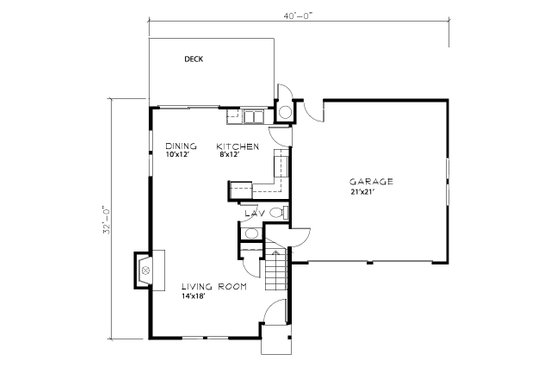

Floor Plan - Main Floor Plan

Reverse
Craftsman Floor Plan - Main Floor Plan Plan #515-21

Floor Plan - Upper Floor Plan

Reverse
Craftsman Floor Plan - Upper Floor Plan Plan #515-21

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 32'
Height : 26'
Width : 40'

Area

Total : 1332 sq/ft
Garage : 420 sq/ft
Main Floor : 576 sq/ft
Porch : 16 sq/ft
Upper Floor : 756 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 7:12
Roof Framing : Truss

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms

Additional Room Features

Great Room Living Room

Garage Features

Front Entry Garage

Outdoor Spaces

Grill Deck Sundeck
