This charming cottage features large panoramic windows, two elevated terrace, as well as a solarium. This house designed for rest and relaxation is 24 feet wide by 41 feet deep and provides 1,340 square feet of living space. The ground floor features a 792 square foot open area that includes a living room with a cathedral ceiling and a fireplace, a kitchen with an island, a dining room, a bathroom and a bedroom. The second floor covers 548 square feet and consists of two bedrooms and a bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

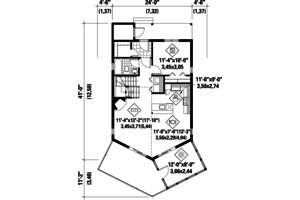

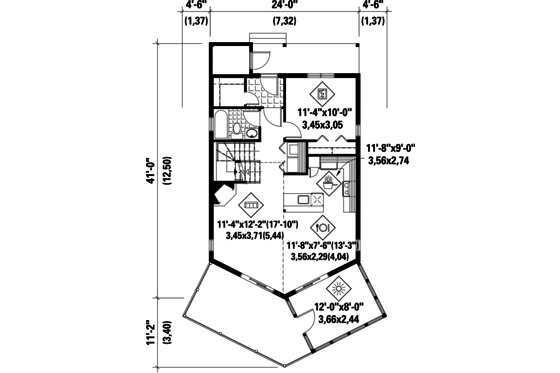

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Full Specs & Features
Depth : 41'
Height : 36' 8"
Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 792 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof Framing : Truss
Roof Load : 50
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2 x 6
What's included in this plan set
See a sample plan set
*See important information before purchasing

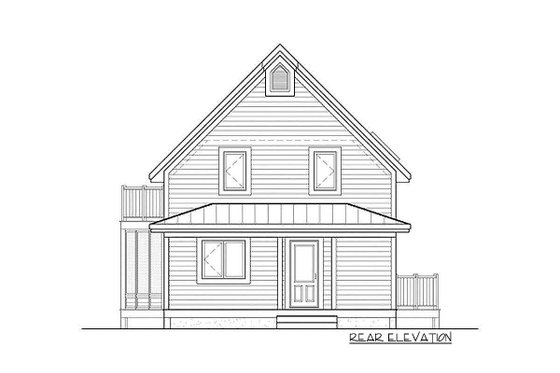

Four detailed exterior elevations showing the final appearance of each side of the house.
