Plan 79-292

Photographs may show modified designs.
Plan 79-292

Plan Description


A single story open floor plan modern house designed to fit on a narrow lot. The living/kitchen/dinning area compose one large vaulted space.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

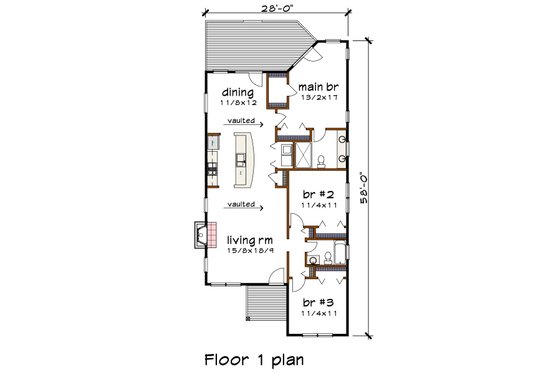

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 0

Dimension

Depth : 58'
Height : 19' 1"
Width : 28'

Area

Total : 1350 sq/ft
Main Floor : 1350 sq/ft
Porch : 64 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted living area
Main Ceiling : 9'

Roof

Primary Pitch : 6/12
Roof Framing : Stick or truss

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2x4

Bedroom Features

Main Floor Master Bedroom

Kitchen Features

Kitchen Island

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Suited For Vacation Home

What's included in this plan set
