Plan 430-8

Photographs may show modified designs.
Plan 430-8

Key Specs


1400
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


The nice open plan flows from the kitchen and dining into the great room making it easy to entertain or keep tabs on the family. In this split bedroom layout, the spacious master with separate bath and large closets is located across the living area from the two additional bedrooms and bath.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

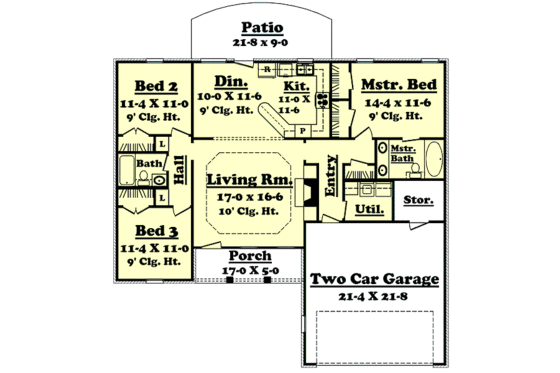

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 47'
Height : 20' 9"
Width : 51'

Area

Total : 1400 sq/ft
First Floor: 1400 sq/ft height 9'
Garage: 483 sq/ft
Porch: 85 sq/ft
Storage: 52 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2"x4"

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Family Room Keeping Room
Storage Area

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

125 sq/ft width 11' 4" x depth 11'

Bedroom 3:

125 sq/ft width 11' 4" x depth 11'

Covered Front Porch:

85 sq/ft width 17' x depth 5'

Dining Room:

115 sq/ft width 10' x depth 11' 6"

Garage:

483 sq/ft width 21' 4" x depth 21' 8"

Kitchen:

127 sq/ft width 11' x depth 11' 6"

Living Room:

281 sq/ft width 17' x depth 16' 6"

Master Bedroom:

165 sq/ft width 14' 4" x depth 11' 6"

Rear Patio:

195 sq/ft width 21' 8" x depth 9'

Storage:

52 sq/ft

What's included in this plan set


See a sample plan set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
  • Cover Sheet – May include index, front view of home, definitions, etc.
  • Foundation Plan – Typically includes dimensioned foundation plan with footing details.
  • Dimensioned Floor Plan – Electrical may be shown.
  • Exterior Views – Four exterior views of the residence with other miscellaneous details.
  • Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  • Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
  • Wall Section(s) – Detail of wall materials and assembly.
  • Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  • Cabinet Elevations – Displays interior kitchen cabinet views.

*Note: If adding a material list to your order, foundation materials will not be included due to site specific conditions. If choosing the alternate 2x6 wall option, the list will not be updated to show 2x6.

*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$945.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1095.00
5 printed plan sets mailed to you.

CAD Set

$1745.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$395.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$395.00
Ideal for sloping lot, lower level of home partially underground.

Wood 2x4

$0.00
Wood 2x4

Wood 2x6

$295.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$195.00
A list of building supplies needed to construct the infrastructure of your new house.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
