Plan 124-709

Photographs may show modified designs.
Plan 124-709

Key Specs


1426
sq ft

3
Beds

2
Baths

2
Floors

1
Garages

Plan Description


Gabled porches and Craftsman windows give this modern two-story duplex a country cottage look. Each unit is well isolated from the other and has a large, naturally bright open area where dining room, living room and kitchen flow together. From the kitchen sink, you can keep tabs on activities in other areas. Unit A & Unit B square footage identical. Total Living Area both units: 2852.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor Plan

Reverse

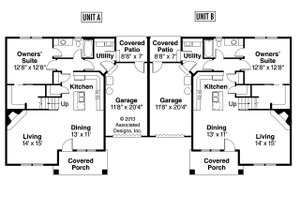

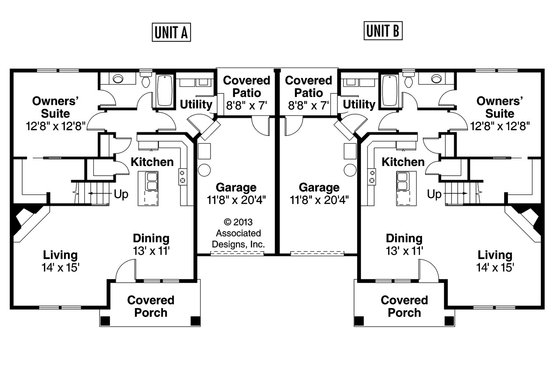

Craftsman Floor Plan - Main Floor Plan Plan #124-709

Floor Plan - Upper Floor Plan

Reverse

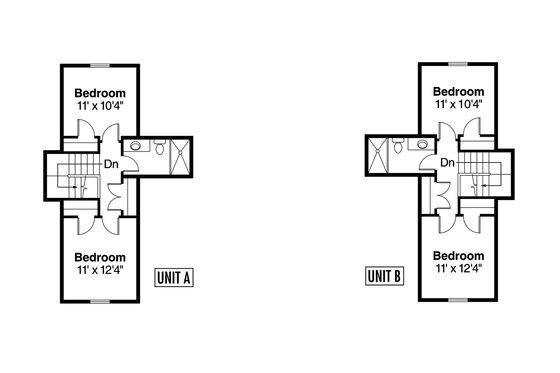

Craftsman Floor Plan - Upper Floor Plan Plan #124-709

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 2
Garages: 1

Dimension

Depth : 38'
Height : 22' 6"
Width : 80'

Area

Total : 1426 sq/ft
First Floor: 983 sq/ft height 9'
First Floor: 983 sq/ft height 9'
Garage: 246 sq/ft height 9'
Garage: 246 sq/ft height 9'
Second Floor: 443 sq/ft height 9'
Second Floor: 443 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 25
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Shingle
Framing : 2"x6"

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

Front Entry Garage

Lot Characteristics

Zero Lot Lines

Outdoor Spaces

Covered Front Porch

Code Compliance

Irc 2006

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

Rooms

Bedroom 2:

135 sq/ft width 11' x depth 12' 4"

Bedroom 2:

135 sq/ft width 11' x depth 12' 4"

Bedroom 3:

113 sq/ft width 11' x depth 10' 4"

Bedroom 3:

113 sq/ft width 11' x depth 10' 4"

Dining Room:

143 sq/ft width 13' x depth 11'

Dining Room:

143 sq/ft width 13' x depth 11'

Garage:

237 sq/ft width 11' 8" x depth 20' 4"

Garage:

237 sq/ft width 11' 8" x depth 20' 4"

Living Room:

210 sq/ft width 14' x depth 15'

Living Room:

210 sq/ft width 14' x depth 15'

Master Suite:

160 sq/ft width 12' 8" x depth 12' 8"

Master Suite:

160 sq/ft width 12' 8" x depth 12' 8"

Patio:

60 sq/ft width 8' 8" x depth 7'

Patio:

60 sq/ft width 8' 8" x depth 7'

What's included in this plan set


See a sample plan set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
*See important information before purchasing

Pricing


Plan Options

PDF Print Set

$1100.00
A non-modifiable, print only PDF file

5 Copy Set

$1110.00
5 printed plan sets mailed to you.

8 Copy Set

$1290.00
8 printed plan sets mailed to you.

PDF Master Set

$2165.00
An unlocked, modifiable PDF file

CAD Set

$2345.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$870.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$275.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
