Small lot? No problem. This slim design gives you an open layout with an island kitchen, three bedrooms, and two bathrooms. The master suite opens to the side yard. Another nice touch: the mudroom, which is ready to hold boots and coats.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

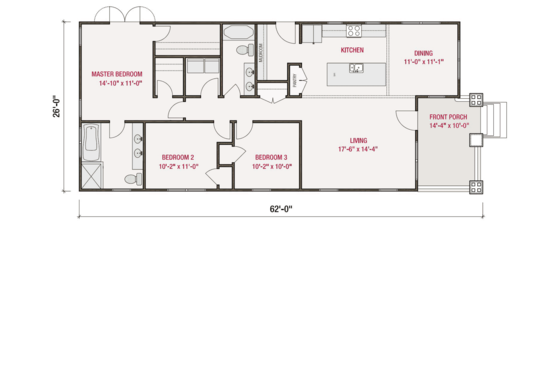

Floor Plan - Main Floor
Full Specs & Features
Depth : 62'
Height : 17' 2"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Floor Master Bedroom
Additional Room Features
Main Floor Laundry
Suited For Corner Lot
Suited For Narrow Lot
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details.
This plan may have exclusive rights in certain geographic areas
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
“At Home Patterns, we’re taking the complication out of creating energy-efficient Craftsman-style home plans and communities. It's an incremental process that homeowners and builders need not be afraid of. Founded in 2001, Home Patterns LLC brings a holistic perspective to the design of homes and communities. Experience working with affordable housing experts to produce inexpensive houses that fit into surrounding bungalow neighborhoods lead us to develop reinvigorated Craftsman style home plans that not only reduce the initial carbon footprints, but also work well in infill construction and newer, small-lot developments. It's a "build green" approach. Home widths are based on 4-foot increments for less waste during construction. Bump outs are kept to a minimum because extra corners are expensive, energy-inefficient, and time consuming to build. Roof lines are simple. Less waste and complication mean savings that can be put into energy-efficient appliances, solar power, and/or insulation. Smaller but well-functioning living spaces mean less energy is needed over the long haul. A smaller footprint means less valuable land is needed. More compact housing encourages walking and mixed-use neighborhoods. This translates into healthier living, more freedom of movement and choice, and less reliance on fossil fuels. These home plan packages allow any builder to construct a first-class energy-efficient and sustainable Craftsman-style home that's comparable in price to a "normal home."
