This design is a not so big, updated Richardsonian Romanesque house with
a wood exterior, for fiscal efficiency. Despite its small size 1440
s.f., this design features large rooms and an elegant entry. \
THIS IS A PASSIVE SOLAR DESIGN. It is intended to be north facing,
allowing the generous back porch to shade the large windows in the
living and dining rooms during the summer to maintain a cool comfortable
interior with minimal AC requirements to reduce electricity consumption.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

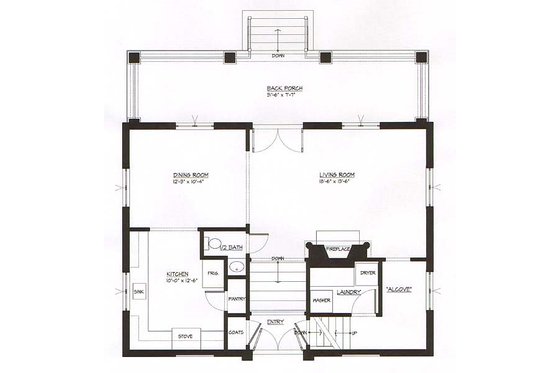

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Basement : 700 sq/ft
Main Floor : 720 sq/ft
Porch : 238 sq/ft
Upper Floor : 720 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Framing : stick
Roof Load : 40
Roof Type : gable
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Insulation : 19
Seismic Rating : 2
Upstairs Master Bedrooms
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Suited For Corner Lot
Suited For Narrow Lot
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
