Plan 20-361

Photographs may show modified designs.
Plan 20-361

Key Specs


1447
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This traditional 1,447 sq. ft. house offers a split plan, with the living room/kitchen and dining area at the center between the master suite and the other two bedrooms. The latter bedrooms flank the second bathroom. The laundry is conveniently located beside the pantry and adjacent to the kitchen, which boasts a large center island/buffet.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

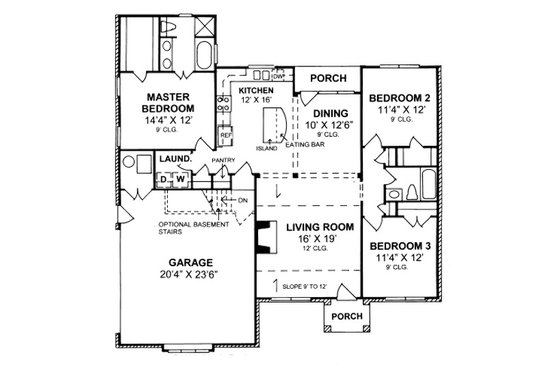

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 51'
Height : 22'
Width : 49'

Area

Total : 1447 sq/ft
First Floor: 1447 sq/ft
Garage: 537 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Rooms

Bathroom 2:

39 sq/ft width 7' 10" x depth 5'

Bedroom 2:

135 sq/ft width 11' 4" x depth 12'

Bedroom 3:

135 sq/ft width 11' 4" x depth 12'

Dining Room:

125 sq/ft width 10' x depth 12' 6"

Garage:

477 sq/ft width 20' 4" x depth 23' 6"

Kitchen:

192 sq/ft width 12' x depth 16'

Kitchen Island:

18 sq/ft width 3' 4" x depth 5' 6"

Living Room:

304 sq/ft width 16' x depth 19'

Master Bathroom:

66 sq/ft width 8' x depth 8' 4"

Master Bedroom:

171 sq/ft width 14' 4" x depth 12'

Master Closet:

49 sq/ft width 6' x depth 8' 4"

Utility Room:

30 sq/ft width 5' 4" x depth 5' 8"

What's included in this plan set


See a sample plan set
  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.

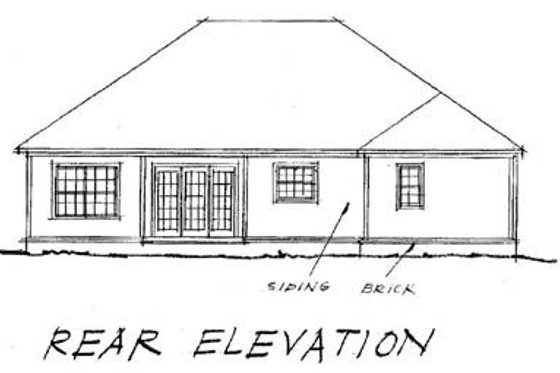

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$865.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1115.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$150.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$150.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
