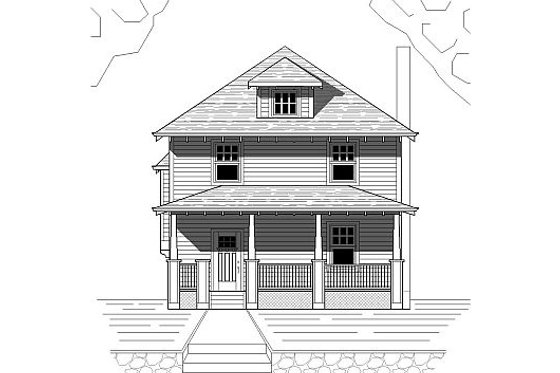

Inspired by yesterday, designed for today. Set yourself apart with
this charming re-creation. Includes unique features such as faux dropped
beam ceilings, many built-ins, and exposed rafter tails. See more plans
by this designer to find a matching garage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

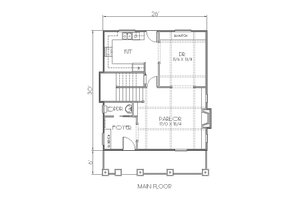

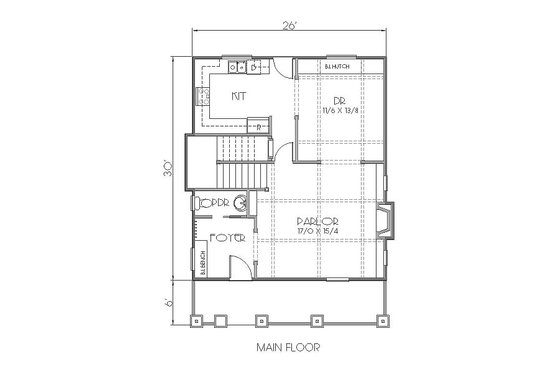

Floor Plan - Main Floor

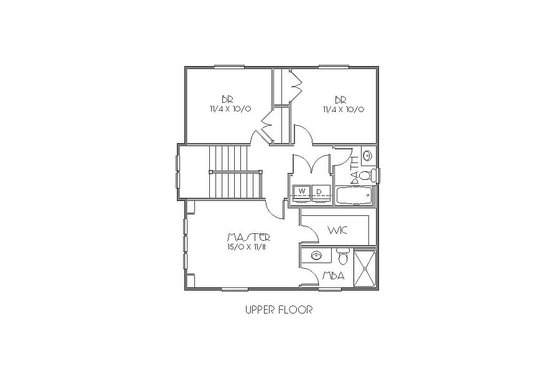

Floor Plan - Upper Floor
Full Specs & Features
Main Floor : 793 sq/ft
Porch : 156 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Framing : Truss
Upstairs Master Bedrooms
Additional Room Features
Suited For Corner Lot
Suited For Narrow Lot
Structural Information Provided
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
