Plan 423-65

Photographs may show modified designs.
Plan 423-65

Key Specs


200
sq ft

1
Beds

1
Baths

1
Floors

0
Garages

Plan Description


A very simple plan with a simple mission: warmth, security, convenience. All needs are met in a small space. The bed may be placed in the optional loft or made to fold down from the wall. Large windows front and back allow views all around. A dining nook and a small kitchen provide the remainder of what is needed for practical living.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

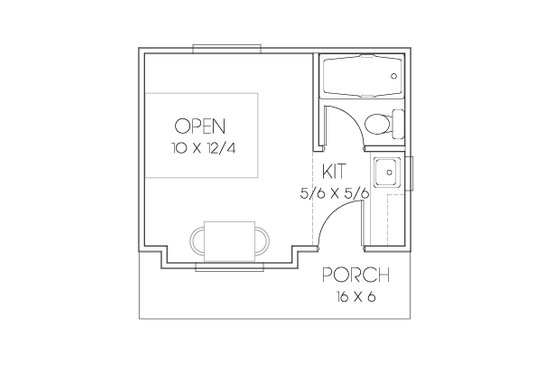

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 1
Garages: 0

Dimension

Depth : 16'
Height : 12' 6"
Width : 16'

Area

Total : 200 sq/ft
Main Floor : 200 sq/ft
Porch : 56 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : full vault
Main Ceiling : 7'

Roof

Primary Pitch : 10
Roof Framing : stick
Secondary Pitch : 4

Exterior Wall Framing

Framing : 2x4

Bedroom Features

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Additional Room Features

Storage Area

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Suited For Vacation Home

What's included in this plan set


See a sample plan set
  • Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Showing room dimensions, wall partitions, windows, etc.
  • Floor framing and roof framing
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Notes and details relevant to the IRC (may or may not be applicable in all locations)

*See important information before purchasing
