Plan 423-1

Photographs may show modified designs.
Plan 423-1

Key Specs


1669
sq ft

3
Beds

2.5
Baths

2
Floors

0
Garages

Plan Description

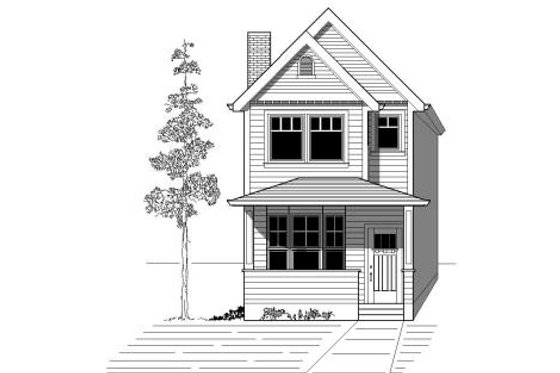

Inspired by yesterday, designed for today. Set yourself apart with this charming re-creation. Includes unique features such as inset dining room bay window, framed chimney with window, inglenook, and exposed beam ceilings. See more plans by this designer to find a garage to match. This plan also available as a duplex.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

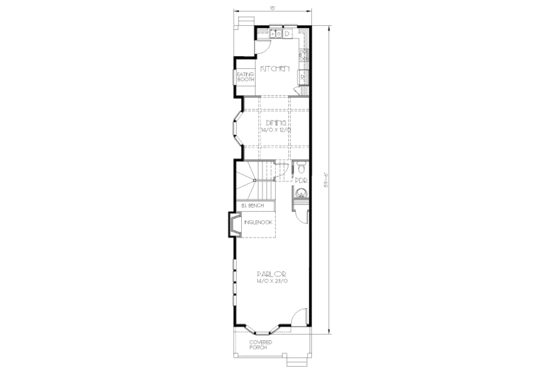

Floor Plan - Main Floor Plan

Reverse

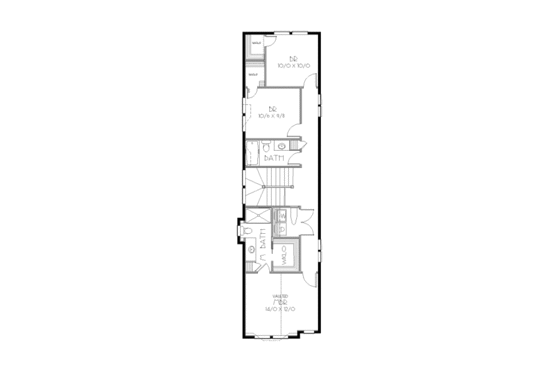

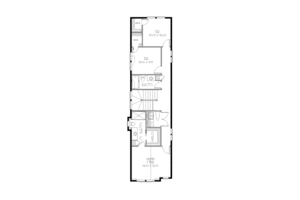

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 0

Dimension

Depth : 60'
Height : 28'
Width : 15'

Area

Total : 1669 sq/ft
Main Floor : 849 sq/ft
Upper Floor : 820 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12
Roof Framing : Truss

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Walk In Pantry Cabinet Pantry

Additional Room Features

Upstairs Laundry

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Unusual Shape
