Plan 41-117

Photographs may show modified designs.
Plan 41-117

Key Specs


1562
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

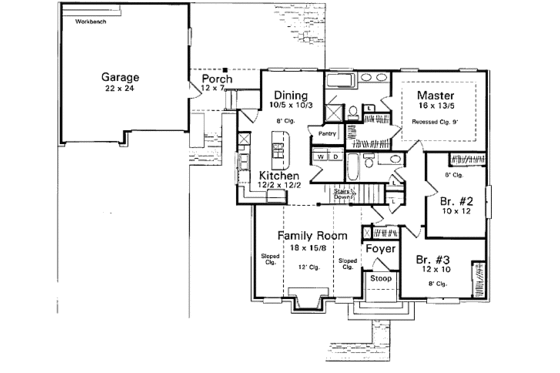

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 50' 9"
Height : 23'
Width : 73' 7"

Area

Total : 1562 sq/ft
First Floor: 1562 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Conventional

Exterior Wall Framing

Framing : Wood - 2x4

Bedroom Features

Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Garage Features

Detached Garage

Outdoor Spaces

Breezeway

Rooms

3rd BR Closet:

12 sq/ft width 2' x depth 6'

Bedroom 2:

120 sq/ft width 10' x depth 12'

Bedroom 2 Closet:

12 sq/ft width 2' x depth 6'

Bedroom 3:

120 sq/ft width 12' x depth 10'

Bedroom 3 Closet:

12 sq/ft width 2' x depth 6'

Deck:

17 sq/ft width 5' 8" x depth 3'

Dining Room:

106 sq/ft width 10' 5" x depth 10' 3"

Foyer:

30 sq/ft width 6' 2" x depth 5'

Garage:

528 sq/ft width 22' x depth 24'

Gathering Room:

282 sq/ft width 18' x depth 15' 8"

Hall:

width 3' 4" x depth 0"

Hall Bathroom:

49 sq/ft width 9' 10" x depth 5'

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

148 sq/ft width 12' 2" x depth 12' 2"

Master Bathroom:

95 sq/ft width 11' x depth 8' 8"

Master Bedroom:

214 sq/ft width 16' x depth 13' 5"

Master Closet:

45 sq/ft width 7' 6" x depth 6'

Utility Room:

31 sq/ft width 5' 4" x depth 6'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$625.00
5 printed plan sets mailed to you.

8 Copy Set

$725.00
8 printed plan sets mailed to you.

Reproducible Set

$725.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1250.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$510.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
