This house has a charming turn-of-the-century exterior with a
contemporary interior. A wraparound railed porch and rear deck expand
the living space to outdoor entertaining. Vaulted ceilings throughout
the great room and dining room add spaciousness; a fireplace warms the
area. The master suite is on the first floor for privacy and
convenience. It boasts a roomy walk-in closet and private bath with a
garden whirlpool tub, separate shower, and dual vanities. Two vaulted
family bedrooms on the second floor share a full bath. Note the loft
area and extra storage space.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

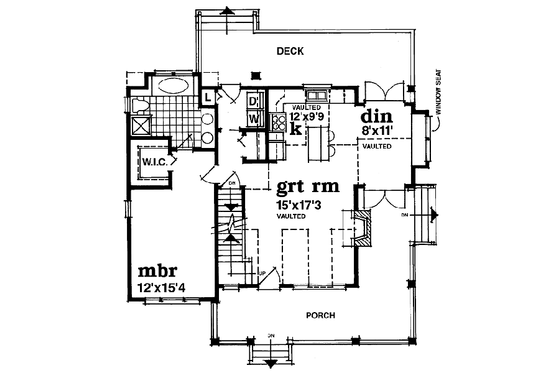

Floor Plan - Main Floor

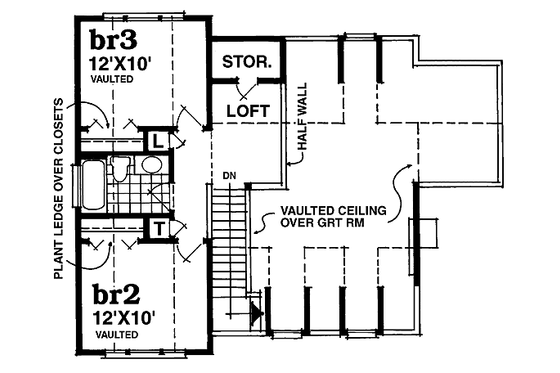

Floor Plan - Upper Floor
Full Specs & Features
Basement : 1050 sq/ft
Main Floor : 1050 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 12:12
Roof Framing : Stick
Main Floor Master Bedroom
Additional Room Features
Great Room Living Room
Suited For Corner Lot
Suited For Narrow Lot
Covered Front Porch
Grill Deck Sundeck
Wrap Around Porch
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

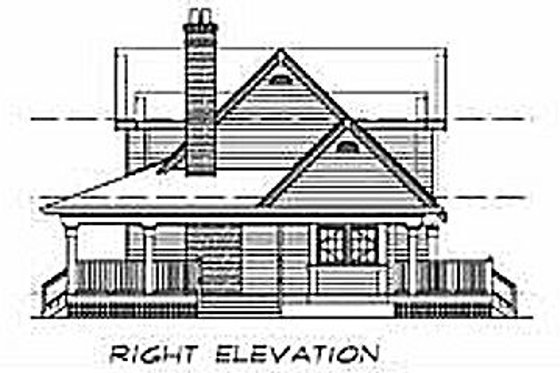

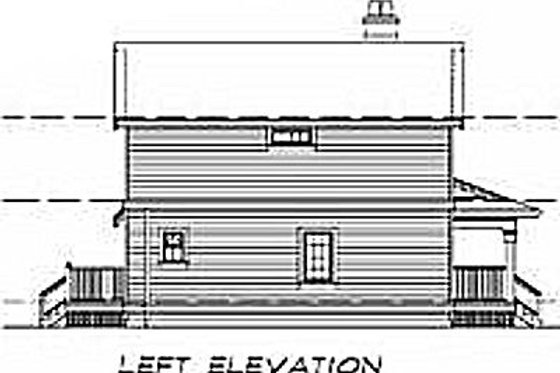

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
