This design is simple yet very highly crafted with the Living, Dining
and Kitchen all being enclosed in a sculpted cathedral space, with
dormer windows and a fireplace, which anchors the space on one end and
the Kitchen is centered on the other. The bedroom wing is separated into
two suites which would be perfect for the empty nesters who want to have
a comfortable guest space.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

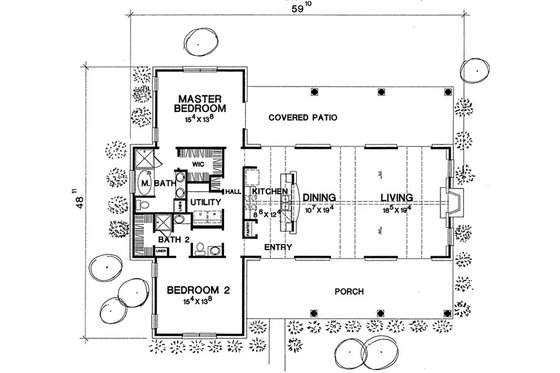

Floor Plan - Main Floor
Full Specs & Features
Main Floor : 1588 sq/ft
Patios : 387 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : stick
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
Structural Information Provided
What's included in this plan set
See a sample plan set
*See important information before purchasing
FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT)
APPROPRIATE FOUNDATION DETAIL SHEET
BUILDING CROSS SECTION IF MULTISTORY
ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
GENERIC WALL SECTIONS
