This great open floor plan has much to offer. The beautiful trayed ceiling and cozy gas logs make the great room a real favorite. The kitchen offers a raised bar and island peninsula for entertaining. The master suite offers all the amenities that one would want, including a large whirlpool tub, separate shower, enclosed toilet, dual sinks, and a large walk in closet. The second bath is oversized and has dual sinks.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

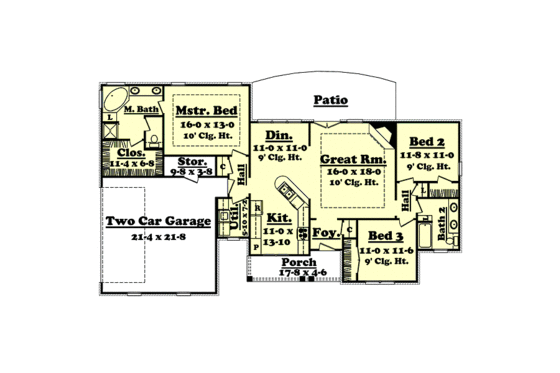

Floor Plan - Main Floor Plan
Full Specs & Features
Depth : 39' 8"
Height : 22' 6"
First Floor: 1600 sq/ft height 9'
Garage: 489 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Walk In Closet
Additional Room Features
Great Room Living Room
What's included in this plan set
See a sample plan set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
*See important information before purchasing
- Cover Sheet – May include index, front view of home, definitions, etc.
- Foundation Plan – Typically includes dimensioned foundation plan with footing details.
- Dimensioned Floor Plan – Electrical may be shown.

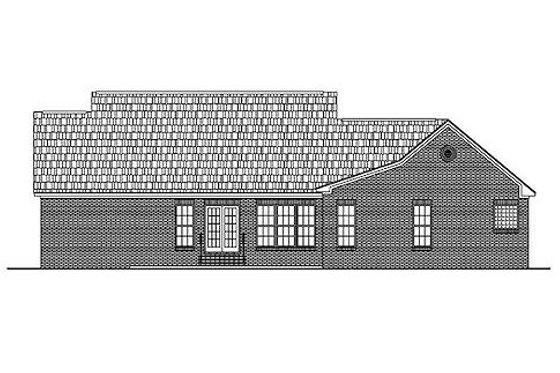

- Exterior Views – Four exterior views of the residence with other miscellaneous details.
