The lovely porch and the brick, wood, and cedar shingles, give this elegant bungalow a charming Craftsman style. The house is 50 feet 5 inches wide by 55 feet deep and offers a 1,637 square foot living area. There is also a 472 square foot two-car garage.
This open concept house with nine-foot ceilings includes a large kitchen with an island, a dining room and a living room with a three-sided gas fireplace in between, a small laundry room next to the garage entrance, a family bathroom, as well as three bedrooms, including a master bedroom with a walk-in closet and a private bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

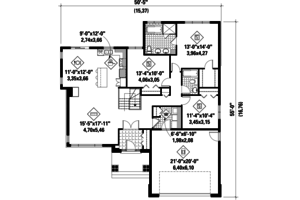

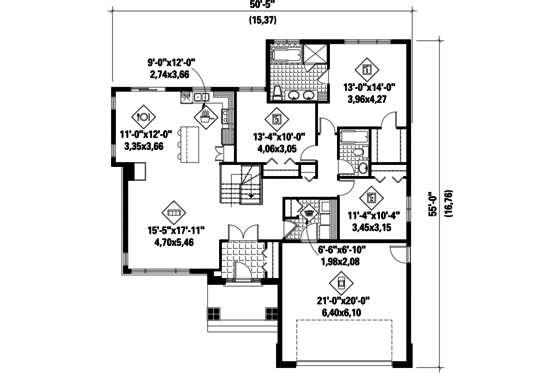

Floor Plan - Main Floor Plan

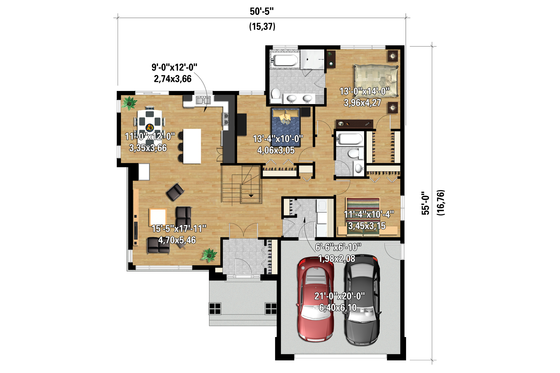

Floor Plan - Main Floor Plan
Full Specs & Features
Depth : 55'
Height : 24' 6"
Basement : 0 sq/ft
Garage : 462 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 1637 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Brick Shingle
Framing : Wood - 2 x 6
