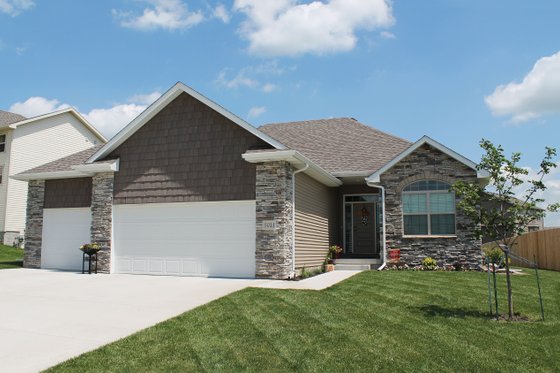

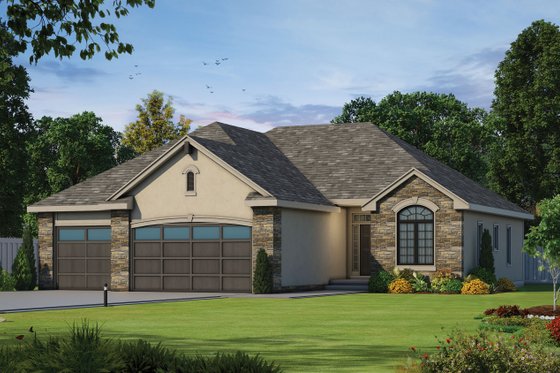

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Exterior - Front Elevation

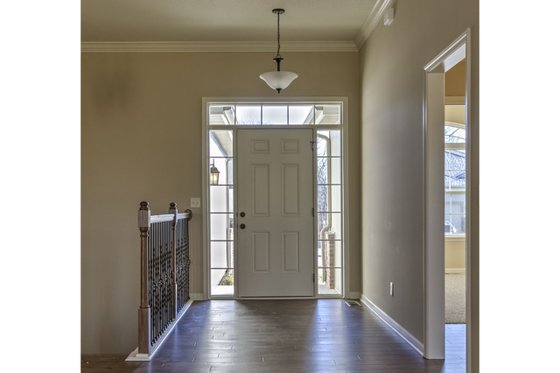

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Entry

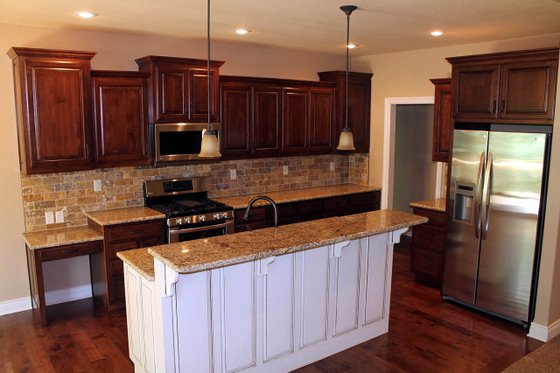

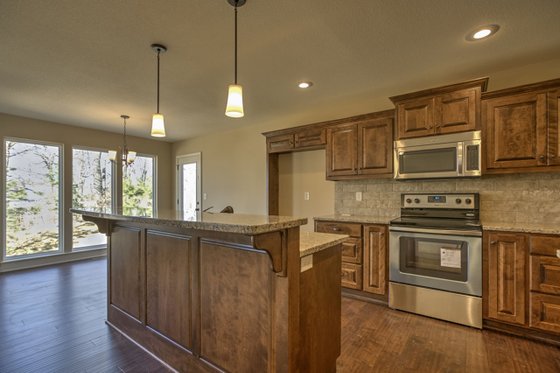

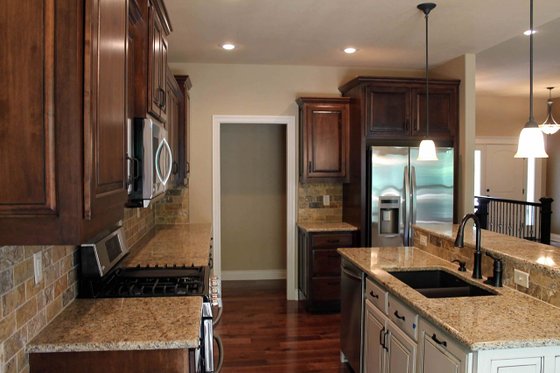

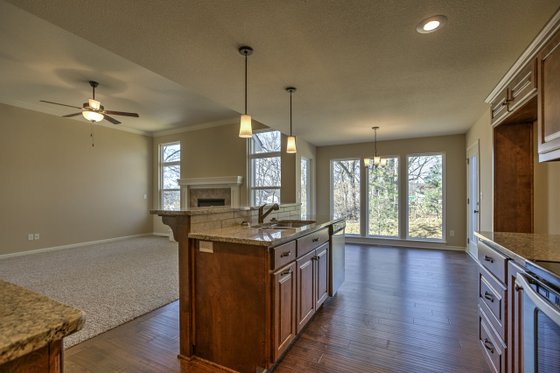

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Kitchen

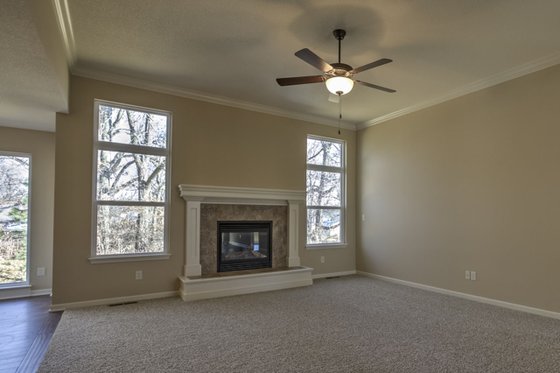

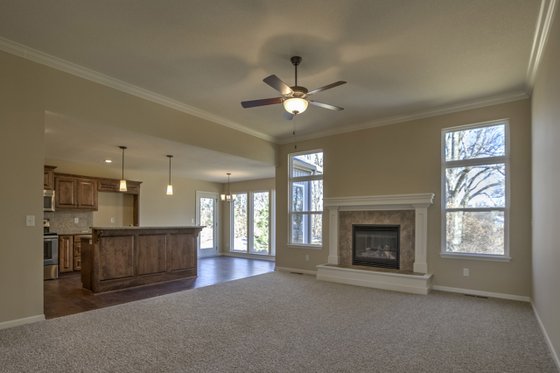

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Family Room

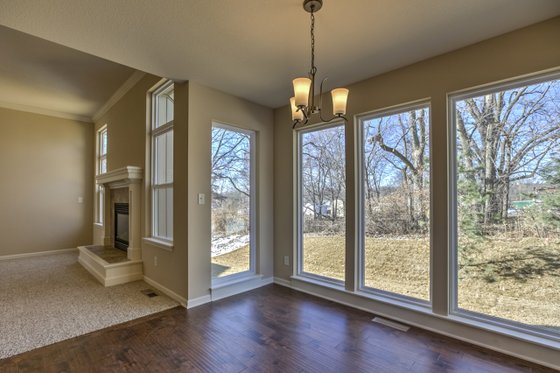

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Dining Room

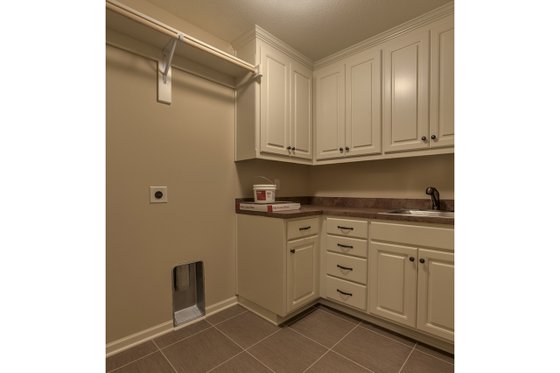

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Laundry

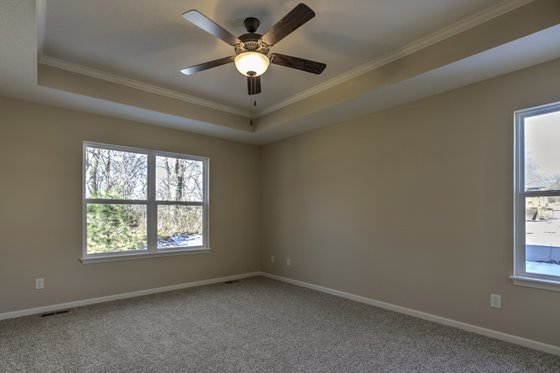

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Master Bedroom

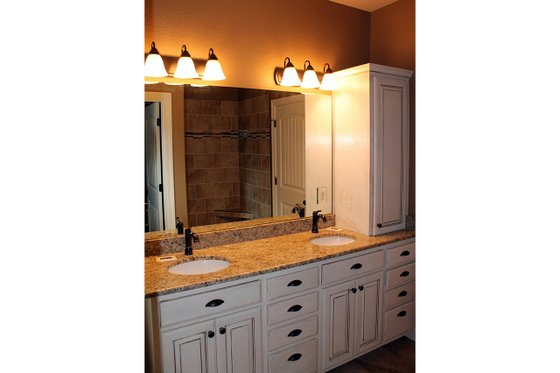

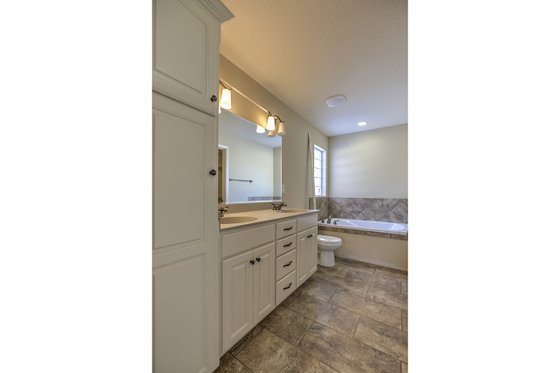

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Master Bathroom

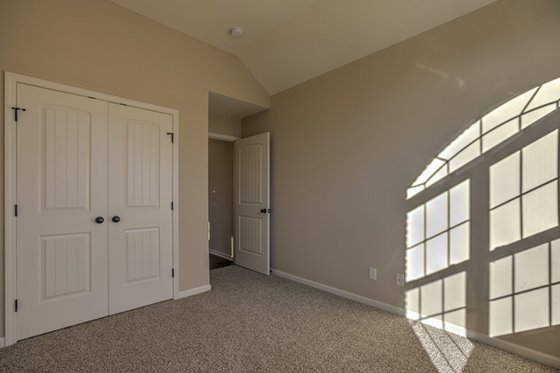

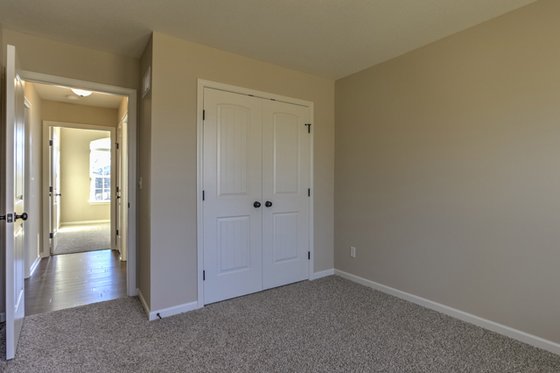

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Bedroom

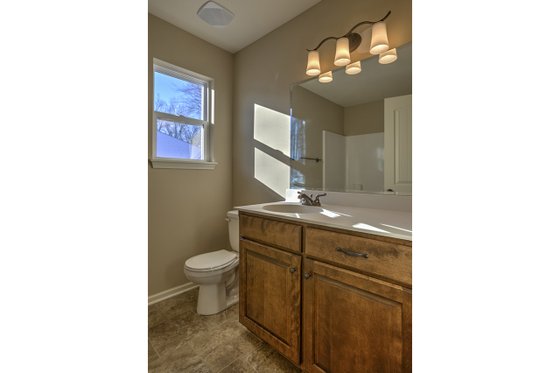

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Interior - Bathroom

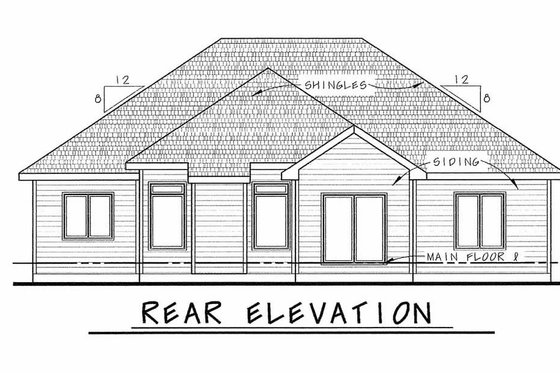

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Exterior - Rear Elevation

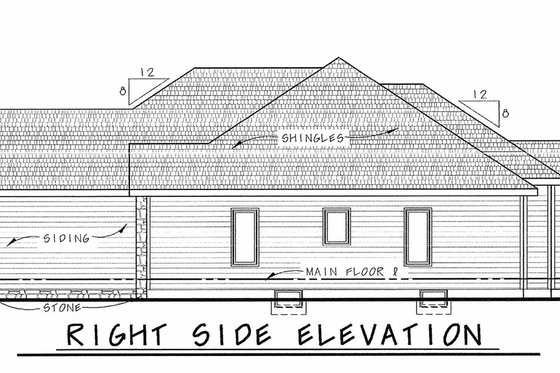

Ranch Style House Plan - 3 Beds 2 Baths 1642 Sq/Ft Plan #20-1869 Exterior - Other Elevation

Plan 20-1869

Photographs may show modified designs.

Key Specs

1642
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Select Plan Set Options What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$100.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$125.00
	A list of building supplies needed to construct the infrastructure of your new house.
	Mirror Reversed Sets $0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$500.00
	Unlimited Use License.

Subtotal

$1005.00

Or order by phone: 1-800-913-2350

Cost to Build Reports Only $19.99 for a Limited Time!

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Questions?

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours Mon‑Fri, 9 am‑8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

Plan 20-1869

Key Specs

1642
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

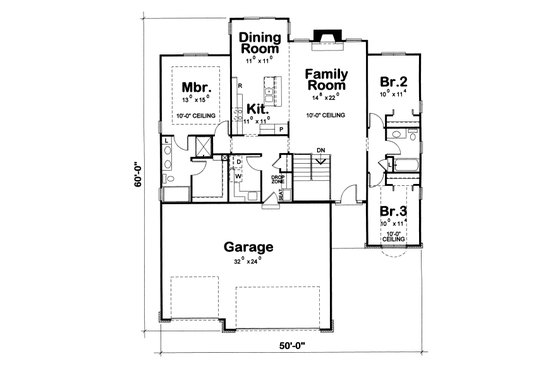

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Other Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 2

Stories: 1

Garages: 3

Dimension

Depth : 60'

Height : 23' 6"

Width : 50'

Area

Total : 1642 sq/ft

First Floor: 1642 sq/ft height 9'

Garage: 771 sq/ft height 9'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Rooms

Bedroom 2:

113 sq/ft width 10' x depth 11' 4"

Bedroom 3:

113 sq/ft width 10' x depth 11' 4"

Dining Room:

121 sq/ft width 11' x depth 11'

Family Room:

322 sq/ft width 14' 8" x depth 22'

Garage:

768 sq/ft width 32' x depth 24'

Kitchen:

121 sq/ft width 11' x depth 11'

Master Bedroom:

195 sq/ft width 13' x depth 15'

What's included in this plan set

See a sample plan set

Cover Page: Front elevation and informative reference sections including: general notes and design criteria
Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2x4 walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Pricing

Plan Options

PDF Set

Best Value!

$1005.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1740.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$650.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$195.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$195.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4

Wood 2x6

$195.00

Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$125.00

A list of building supplies needed to construct the infrastructure of your new house.

Mirror Reversed Sets

$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License

$500.00

Unlimited Use License.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
