Attention to details! This plan has them: Spacious family is open to the
large kitchen with walk-in pantry & optional island. Private master
suite has oversized closet, separate shower & garden tub. Dressy
exterior features stone detailing, yet keeping the cost low with the
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

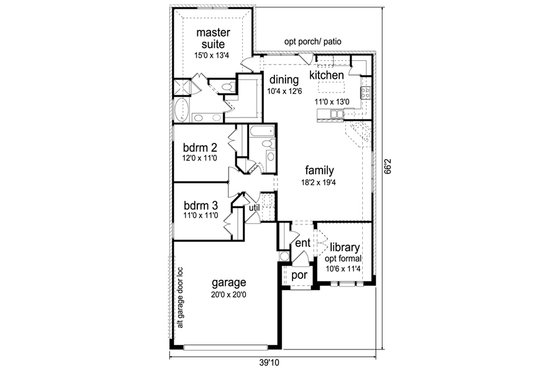

Floor Plan - Main Floor
Full Specs & Features
Depth : 66' 2"
Height : 21'
First Floor: 1655 sq/ft height 10'
Garage: 467 sq/ft height 10'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 9'
Main Ceiling : 10'
Primary Pitch : 7:12
Roof Framing : stick
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Front Entry Garage
Side Entry Garage
Suited For Corner Lot
Suited For Narrow Lot
132 sq/ft width 12' x depth 11'
121 sq/ft width 11' x depth 11'
129 sq/ft width 10' 4" x depth 12' 6"
351 sq/ft width 18' 2" x depth 19' 4"
400 sq/ft width 20' x depth 20'
143 sq/ft width 11' x depth 13'
199 sq/ft width 15' x depth 13' 4"
What's included in this plan set
See a sample plan set
*See important information before purchasing
FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

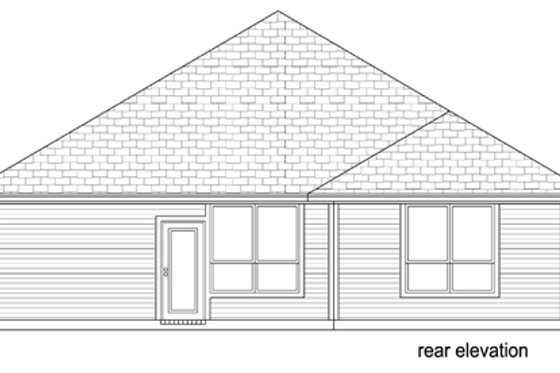

ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
