The double height great room is the heart of this traditional 1,658 sq. ft., 3 bedroom, 2.5 bath plan. Two upstairs bedrooms are off the balcony overlooking the great room. The ground floor master suite has a tray ceiling over the bedroom. There is a bonus room over the garage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

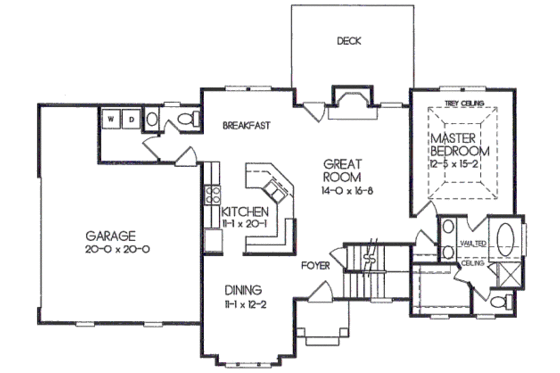

Floor Plan - Main Floor

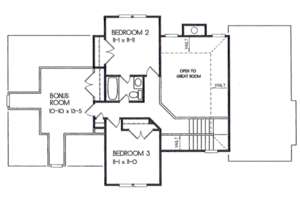

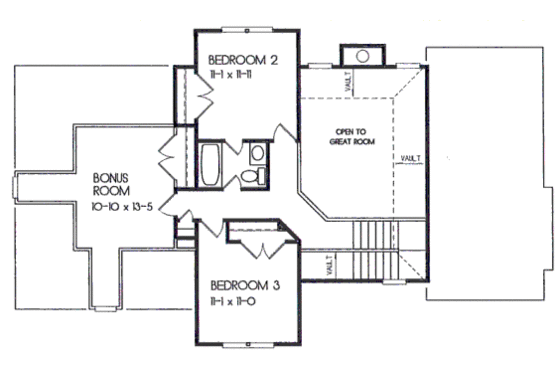

Floor Plan - Upper Floor
Full Specs & Features
First Floor: 1184 sq/ft height 8'
Second Floor: 474 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x4"
Main Floor Master Bedroom
Walk In Closet
132 sq/ft width 11' 1" x depth 11' 11"
121 sq/ft width 11' 1" x depth 11'
Bonus Room - Finished:
145 sq/ft width 10' 10" x depth 13' 5"
134 sq/ft width 11' 1" x depth 12' 2"
400 sq/ft width 20' x depth 20'
233 sq/ft width 14' x depth 16' 8"
222 sq/ft width 11' 1" x depth 20' 1"
188 sq/ft width 12' 5" x depth 15' 2"
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

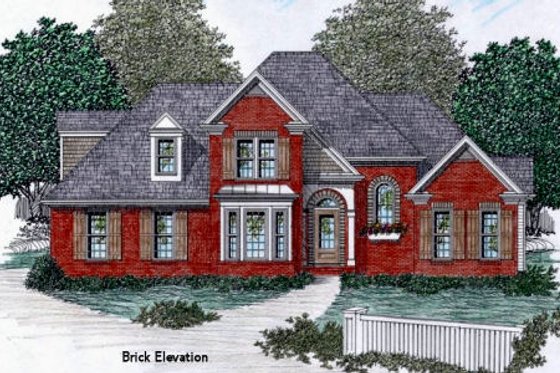

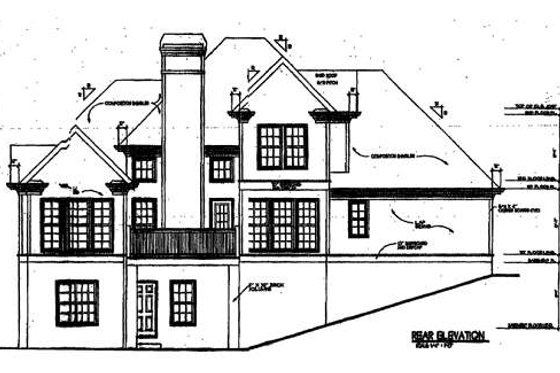

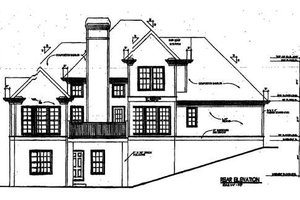

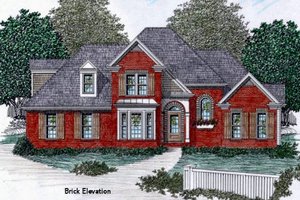

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
