This extraordinary plan has 4 bedrooms, 2 living areas & a garden tub & shower in the master all for a 30' wide lot. The craftsman style elevation adds charm, & eat-at island in the kitchen is great for casual gatherings.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

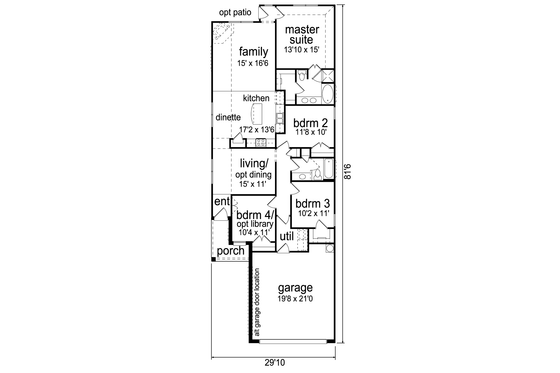

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 81' 6"
Height : 16' 7"
Width : 29' 10"

Area

Total : 1680 sq/ft
First Floor: 1680 sq/ft height 10'
Garage: 467 sq/ft height 10'
Porch: 61 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Master slopes to 9'Bdrms 2 - 4: 8'Family, Living, Kitchen & Dinette slopes from 8-10'
Garage Ceiling : 8'
Main Ceiling : 10'

Roof

Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : gables

Exterior Wall Framing

Exterior Wall Finish : brick
Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

width 11' 8" x depth 10'

Bedroom 3:

width 10' 2" x depth 11'

Bedroom 4:

width 10' 4" x depth 11'

Family Room:

width 15' x depth 16' 6"

Garage:

width 19' 8" x depth 21'

Kitchen:

width 17' 2" x depth 13' 6"

Living Room:

width 10' 4" x depth 11'

Master Bedroom:

width 13' 10" x depth 15'

Porch Front:

61 sq/ft

What's included in this plan set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
