Keystone arches, gables and stucco give European sophistication to this great plan, designed for the comfort of today's family. The floor plan begins with a large great room with a fireplace, while a U-shaped kitchen and large utility room stand efficiently nearby. An octagonal tray ceiling dresses up the dining room. Other special ceiling treatments include a cathedral ceiling in the great room and trays in both the master and front bedrooms. An indulgent master bath features a garden tub, a separate shower and dual vanities.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

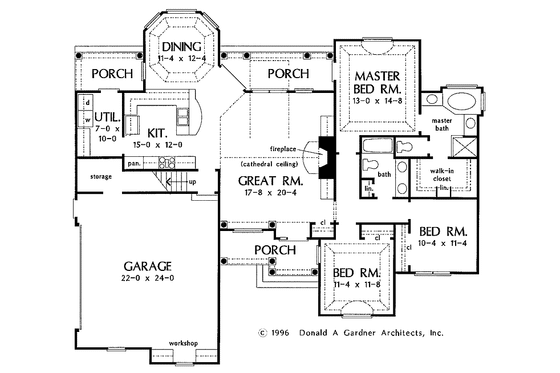

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Depth : 55' 2"
Height : 24'
Bonus: 394 sq/ft
First Floor: 1682 sq/ft height 8'
Garage: 644 sq/ft
Porch: 247 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Covered Front Porch
Covered Rear Porch
117 sq/ft width 10' 4" x depth 11' 4"
132 sq/ft width 11' 4" x depth 11' 8"
Bonus Room - Finished:
301 sq/ft width 13' 6" x depth 22' 4"
139 sq/ft width 11' 4" x depth 12' 4"
528 sq/ft width 22' x depth 24'
359 sq/ft width 17' 8" x depth 20' 4"
68 sq/ft width 7' 4" x depth 9' 4"
180 sq/ft width 15' x depth 12'
80 sq/ft width 8' x depth 10'
190 sq/ft width 13' x depth 14' 8"
61 sq/ft width 10' 4" x depth 6'
70 sq/ft width 7' x depth 10'
