This symmetrical contemporary two-storey house is 24 feet 10 inches wide by 42 feet deep and provides 1,699 square feet of living space in addition to a 265 square foot one-car garage. The 717 square foot ground floor features 9-foot high ceilings. It includes an entrance hall, a powder room, an open living and dining room with large windows, as well as a spacious kitchen with a large island. The upper floor has 982 square feet of living space and features three bedrooms, including a master bedroom with French doors and a walk-in closet, as well a family bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

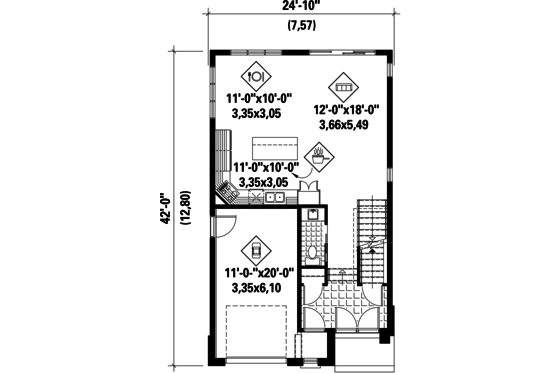

Floor Plan - Main Floor

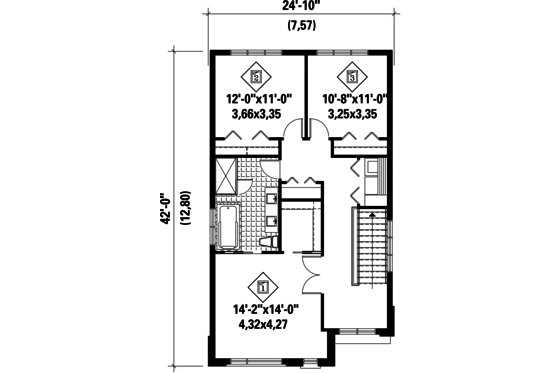

Floor Plan - Upper Floor
Full Specs & Features
Depth : 42'
Height : 29' 6"
Basement : 0 sq/ft
Garage : 265 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 717 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Brick Siding
Framing : Wood - 2 x 6
What's included in this plan set
See a sample plan set
*See important information before purchasing
Four detailed exterior elevations showing the final appearance of each side of the house.
Different isometric views with dimensions as well as relevant information to build the foundations.
A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
