Plan 1070-24

Photographs may show modified designs.
Plan 1070-24

Key Specs


1702
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor Plan

Reverse

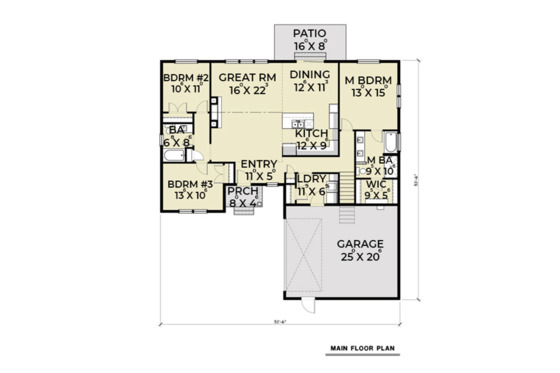

Craftsman Floor Plan - Main Floor Plan Plan #1070-24

Floor Plan - Other Floor Plan

Reverse

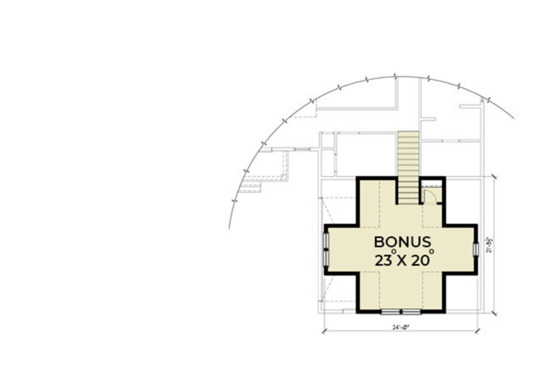

Optional Bonus Level

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 53' 6"
Height : 23' 5"
Width : 53' 6"

Area

Total : 1702 sq/ft
Bonus : 366 sq/ft
Garage : 546 sq/ft
Main Floor : 1702 sq/ft
Patios : 128 sq/ft
Porch : 36 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vaulted Great Room
Main Ceiling : 9'

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Great Room Living Room
Main Floor Laundry
Unfinished Future Space

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build

Rooms

Bedroom 2:

width 10' 6" x depth 11'

Bedroom 3:

width 13' 6" x depth 10' 6"

Dining Room:

width 12' 6" x depth 11' 3"

Entry:

width 11' x depth 5'

Hall Bath :

width 6' 8" x depth 8' 6"

Kitchen:

width 12' 6" x depth 9' 6"

Laundry:

width 11' 9" x depth 6' 9"

Master Bedroom:

width 13' x depth 15'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1275.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1725.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

5 Copy Set

$1750.00
5 printed plan sets mailed to you.

8 Copy Set

$1950.00
8 printed plan sets mailed to you.

Single Set

$625.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$750.00
Additional Use License.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
