Tudor House Plan 72-593 1707 sq ft, 4 bed, 2.5 bath, 2 floor, 2 garage

Name: Tudor Style House Plan - 4 Beds 2.5 Baths 1707 Sq/Ft Plan #72-593
Brand: Houseplans.com
SKU: 72-593
Price: 1108.80 USD
Availability: InStock

Key Specs

1707
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description

This English Tudor split-level adaptation has much to offer. Perhaps one of its most significant features is that it can be built economically on a relatively small site. But its size does not inhibit any of its fine features. The living room boasts a fireplace as does the family room. The upper level holds three bedrooms and a study. The master bedroom enjoys its own private balcony and a comfortable full bath. A large attic storage area is provided for all your odds and ends. Note the U-shaped kitchen and its convenient proximity to the breakfast and dining rooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

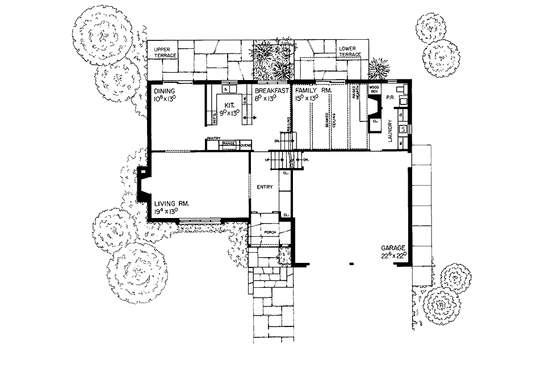

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

LEARN MORE

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 2.5

Stories: 2

Garages: 2

Dimension

Depth : 37'

Height : 26'

Width : 52' 5"

Area

Total : 1707 sq/ft

Basement Living: 335 sq/ft

First Floor: 795 sq/ft height 8'

Second Floor: 912 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Main Floor Master Bedroom

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Outdoor Spaces

Covered Front Porch

Rooms

3rd BR Closet:

10 sq/ft width 5' 1" x depth 2' 1"

Attic:

560 sq/ft width 20' x depth 28'

Basement Foundation:

708 sq/ft width 27' 3" x depth 26'

Bedroom 2:

120 sq/ft width 11' 6" x depth 10' 6"

Bedroom 2 Closet:

12 sq/ft width 6' 1" x depth 2' 1"

Bedroom 3:

126 sq/ft width 11' 6" x depth 11'

Bedroom 3 Closet:

12 sq/ft width 6' 1" x depth 2' 1"

Bedroom 4 Closet:

6 sq/ft width 3' 1" x depth 2' 1"

Breakfast Room:

62 sq/ft width 7' 9" x depth 8'

Dining Room:

138 sq/ft width 10' 8" x depth 13'

Garage:

495 sq/ft width 22' 6" x depth 22'

Gathering Room:

104 sq/ft width 8' x depth 13'

Hall:

66 sq/ft width 5' 8" x depth 11' 8"

Hall Bathroom:

58 sq/ft width 8' x depth 7' 3"

Hall Closet:

20 sq/ft width 2' 2" x depth 9' 4"

Kitchen:

117 sq/ft width 9' x depth 13'

Laundry Room:

43 sq/ft width 5' 5" x depth 8'

Living Room:

251 sq/ft width 19' 4" x depth 13'

Master Bathroom:

26 sq/ft width 8' x depth 3' 4"

Master Bedroom:

202 sq/ft width 15' x depth 13' 6"

Master Closet:

37 sq/ft width 4' 7" x depth 8' 1"

Porch - Front:

38 sq/ft width 8' x depth 4' 10"

Powder Room:

25 sq/ft width 5' 4" x depth 4' 9"

Study:

111 sq/ft width 11' 6" x depth 9' 8"

Walk-In Closet:

33 sq/ft width 8' 1" x depth 4' 1"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.

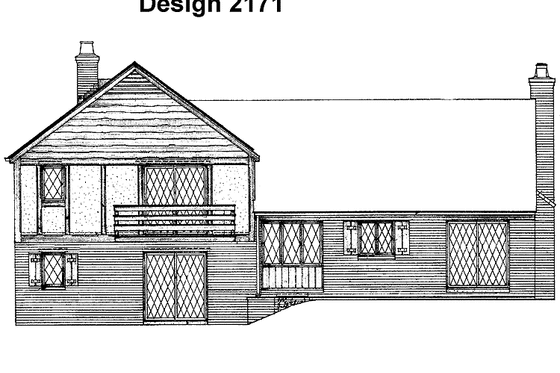

Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.

Pricing

Plan Options

PDF Set

Best Value!

$942.48

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1060.29

5 printed plan sets mailed to you.

8 Copy Set

$1178.10

8 printed plan sets mailed to you.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$233.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Daylight Basement

$233.75

Ideal for sloping lot, lower level of home partially underground.

Slab

$233.75

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design

$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License

$845.75

Allows you to build this home as many times as you want.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
