Plan 137-369

Photographs may show modified designs.
Plan 137-369

Key Specs


1746
sq ft

3
Beds

2
Baths

1
Floors

0
Garages

Plan Description


This cottage plan with Craftsman appeal is perfect for a narrow lot. The front of the house is all living area with a great room with fireplace, open kitchen with island and bayed dining area. Toward the rear of the plan are the bedrooms, including the master suite with large walk-in closet and luxury bath. There is an optional front loading garage that would be located on the left side of the house.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

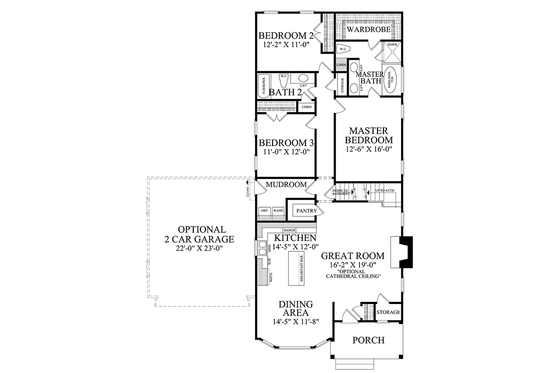

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 0

Dimension

Depth : 66' 2"
Height : 25'
Width : 28' 2"

Area

Total : 1746 sq/ft
First Floor: 1746 sq/ft height 9'
Porch: 95 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Conventional
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4

Bedroom Features

Fireplace
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings

Outdoor Spaces

Covered Front Porch

What's included in this plan set


See a sample plan set
All plans are drawn at ¼” scale or larger and include :
  • Designer’s rendering of front elevations
  • Foundation and dimensioned floor plans
  • Electrical plans
  • Section through house
  • All exterior elevation
  • Selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details.
  • Roof Plan and Exterior Details
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$700.00
5 printed plan sets mailed to you.

8 Copy Set

$800.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1000.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Single Set

$600.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x4

$0.00
Wood 2x4

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$55.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Other Plans By This Designer

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
