Plan 1010-14

Photographs may show modified designs.
Plan 1010-14

Key Specs


1775
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


Attractive architectural details adorn this stacked-box design with timeless curb appeal. Inside, the layout is simple and utterly contemporary, displaying the island kitchen that opens to the great room, a dining room defined by a column instead of walls, and a clever drop area off the garage with lockers and storage. The powder bath is tucked into a very private corner. Upstairs, the master suite is equipped to impress with a large shower, a walk-in closet, and a tray ceiling. Two more bedrooms have easy access to the convenient second-floor laundry and nearby bonus room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

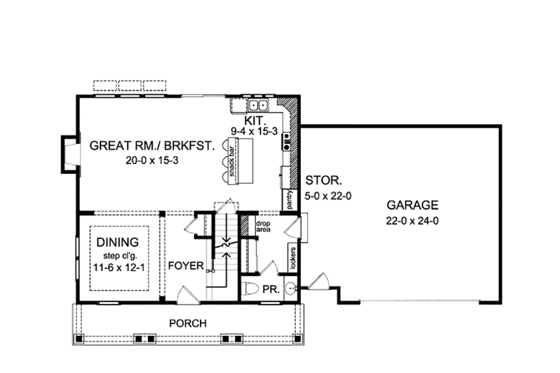

Floor Plan - Main Floor Plan

Reverse
Colonial Floor Plan - Main Floor Plan Plan #1010-14

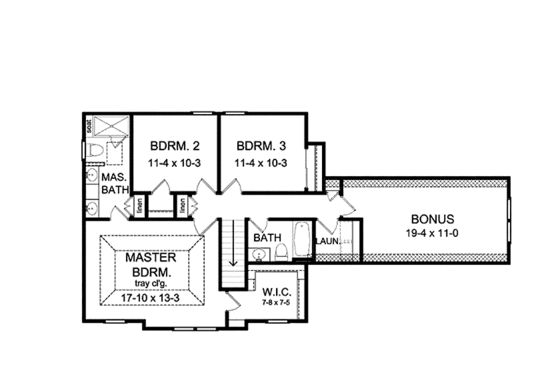

Floor Plan - Upper Floor Plan

Reverse
Colonial Floor Plan - Upper Floor Plan Plan #1010-14

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 33' 4"
Height : 30' 4"
Width : 57' 4"

Area

Total : 1775 sq/ft
Basement Unfinished: 840 sq/ft
Bonus: 247 sq/ft
First Floor: 840 sq/ft height 9'
Garage: 638 sq/ft
Second Floor: 935 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6

Bedroom Features

Formal Dining Room
Upstairs Master Bedrooms

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room
Mud Room
Unfinished Future Space
Upstairs Laundry

Rooms

Bedroom 2:

116 sq/ft width 11' 4" x depth 10' 3"

Bedroom 3:

116 sq/ft width 11' 4" x depth 10' 3"

Bonus Room - Finished:

212 sq/ft width 19' 4" x depth 11'

Dining Room:

138 sq/ft width 11' 6" x depth 12' 1"

Garage:

528 sq/ft width 22' x depth 24'

Great Room:

305 sq/ft width 20' x depth 15' 3"

Kitchen:

142 sq/ft width 9' 4" x depth 15' 3"

Laundry:

width 6' 4" x depth 6'

Master bath:

width 5' 10" x depth 13' 8"

Master Bedroom:

236 sq/ft width 17' 10" x depth 13' 3"

Master Walk-In Closet:

58 sq/ft width 7' 8" x depth 7' 8"
