Enter the Foyer and step right into the Great Room. The Great Room comes
complete with a built-in entertainment center and desk. French doors
with transoms lead out onto the porch, and arched openings lead you into
the formal Dining Room and Kitchen. The Kitchen has an island downdraft
range and snack bar. Room for an optional built-in microwave, a
lazy-susan, and a trash compactor. Let's not forget lots of cabinetry
and a pantry. The big Master Bedroom with a large walk-in closet is
tucked in the back of the house. The Master Bath has dual sinks, a
whirlpool tub, a custom shower, separate toilet compartment with a linen
closet. Bedrooms 2 and 3 share a full Bath and a hall linen closet. The
Laundry Room is unique in that it comes equipped with a shower, sink,
toilets and lots of cabinets. Which is perfect if you wanted to add a
pool, or for the muddy kids before they the home. This plan comes with a
detached garage plan, you decide to build it now or later.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

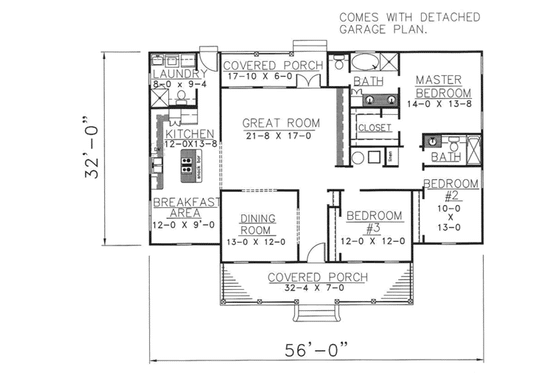

Floor Plan - Main Floor Plan
Full Specs & Features
Garage : 528 sq/ft
Main Floor : 1785 sq/ft
