Plan 48-414

Photographs may show modified designs.
Plan 48-414

Key Specs


1800
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Plan Description


It looks like a quaint little abode with its board-and-batten siding, cedar shingle detailing, and columned covered porch but even a quick peek inside will prove that there is much more to this plan than meets the eye. Begin with the entry foyer, which rises to a nine-foot ceiling. On one side is a washer/dryer alcove with a closet across the way; on the other is another large storage area. Just down the hallway is a third closet (can you ever have too many?). The kitchen and dining area also boast nine-foot ceilings and are open to a vaulted great room with corner fireplace. Sliding doors in the dining area lead to a covered side porch (al fresco dining, anyone?). The kitchen features a center island, built-in desk/work center and pantry. Three bedrooms (or two plus an office) are found on the right side of the plan. The master salon has a vaulted ceiling; Bedrooms 2 and 3 have nine-foot ceilings. The master bath is wonderfully appointed with a separate shower, spa tub and dual sinks. The two-car garage features an additional bay for a workshop or more vehicles.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

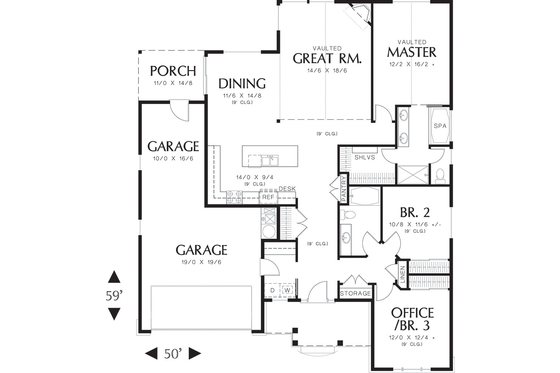

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 59'
Height : 21'
Width : 50'

Area

Total : 1800 sq/ft
First Floor: 1800 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Great Room and Master Bedroom vault to 11 ft. peak.
Main Ceiling : 9'

Exterior Wall Framing

Framing : 2"x6"

Bedroom Features

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Den Office Study Computer
Great Room Living Room
Storage Area
Workshop

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

122 sq/ft width 10' 8" x depth 11' 6"

Den/Office or Bedroom 3:

147 sq/ft width 12' x depth 12' 4"

Dining Room:

168 sq/ft width 11' 6" x depth 14' 8"

Garage:

370 sq/ft width 19' x depth 19' 6"

Garage Two:

165 sq/ft width 10' x depth 16' 6"

Great Room:

268 sq/ft width 14' 6" x depth 18' 6"

Kitchen:

130 sq/ft width 14' x depth 9' 4"

Master Bedroom:

196 sq/ft width 12' 2" x depth 16' 2"

What's included in this plan set


See a sample plan set
  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1064.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1214.00
5 printed plan sets mailed to you.

CAD Set

$2128.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$714.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$115.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$355.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
