Photographs may show modified designs.
Plan 928-192

Key Specs


1858
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Plan Description


Designed to take full advantage of a lovely view, this Visbeen Associates home packs maximum living into minimum space. A large open kitchen, living and dining area is located along the home's water side, with multiple windows for light and a covered deck for outdoor lounging. The main-level offerings are rounded out by a handy home management area and laundry. Upstairs, the master suite enjoys its private deck, and two additional bedrooms share a bath. If finished, the walk-out lower level houses an exercise room, family room, and additional bath.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

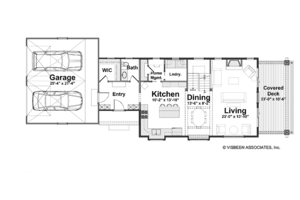

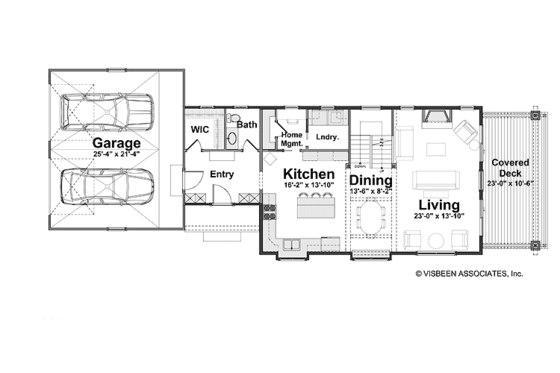

Floor Plan - Main Floor Plan

Reverse

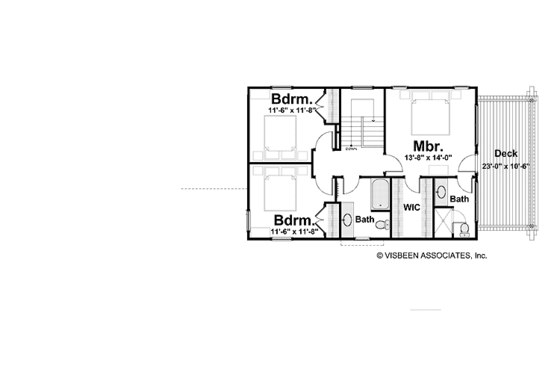

Floor Plan - Upper Floor Plan

Reverse

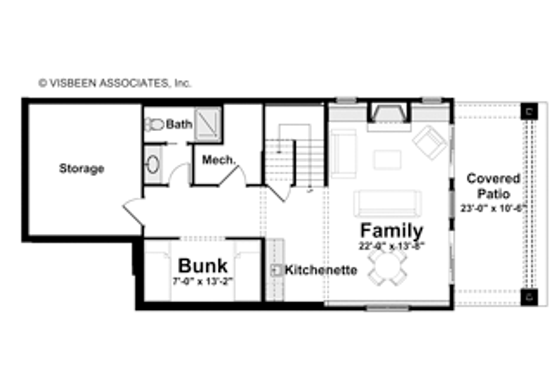

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 2
Garages: 2

Dimension

Depth : 80' 6"
Height : 31'
Width : 30'

Area

Total : 1858 sq/ft
Basement Unfinished: 751 sq/ft height 9'
First Floor: 1056 sq/ft height 9'
Second Floor: 802 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard
Deck

Rooms

Bedroom 2:

134 sq/ft width 11' 6" x depth 11' 8"

Bedroom 3:

134 sq/ft width 11' 6" x depth 11' 8"

Dining Room:

110 sq/ft width 13' 6" x depth 8' 2"

Family Room:

300 sq/ft width 22' x depth 13' 8"

Garage:

540 sq/ft width 25' 4" x depth 21' 4"

Kitchen:

223 sq/ft width 16' 2" x depth 13' 10"

Living Room:

318 sq/ft width 23' x depth 13' 10"

Master Bedroom:

191 sq/ft width 13' 8" x depth 14'

What's included in this plan set


See a sample plan set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$2995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
