This is a wonderful plan for alley access or even a back detached
garage. A cleverly simple plan layout ensures an easy construction
process. The home has a great upstairs den for the kids to hang out.
There's a small chance to actually keep the toys upstairs. Also, lots of
extra storage under the roof in the attic spaces. One option, a back
entry through washer dryer area for more of a mud room.
Home widths are based on 4' increments - less waste during construction. Bump outs are kept to a minimum. Extra corners are expensive, energy inefficient, and time consuming to build. Roof line is simple. Less waste and complication means savings that can be put into extra energy efficient appliances, solar power, and most importantly insulation. A smaller, but well functioning, living space means less energy is needed over the life of the home. A simple insulating envelope with equipment in conditioned spaces equals superior HVAC performance and less utility costs.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

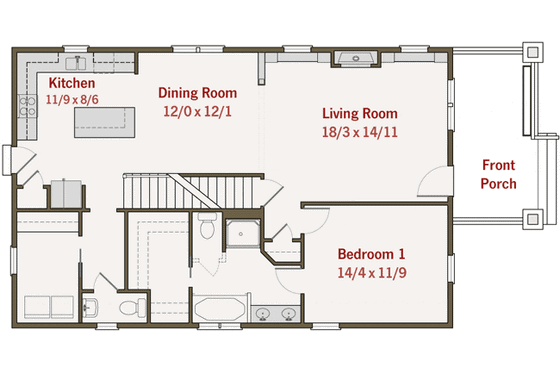

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Main Floor : 1232 sq/ft
Upper Floor : 628 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Ceiling at back bedrooms slopes down to 5'-8" knee wall.
Main Ceiling : 9'
Primary Pitch : 6:12
Roof Framing : stick
Main Floor Master Bedroom
Rear Entry Garage
Suited For Corner Lot
Suited For Narrow Lot
Energy Efficient Features
Energy Efficient Design
What's included in this plan set
See a sample plan set
*See important information before purchasing
Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.

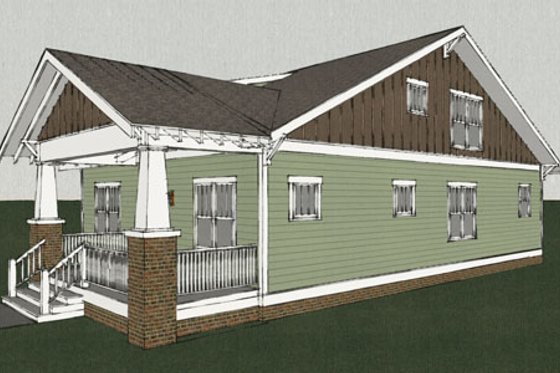

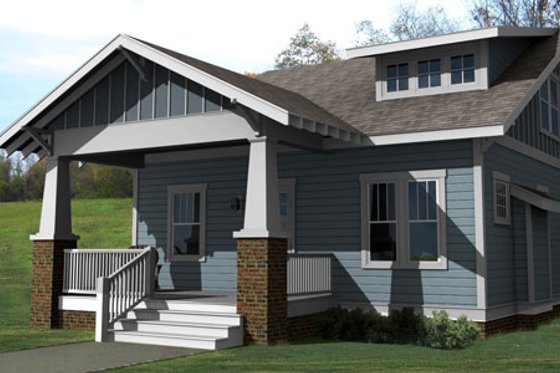

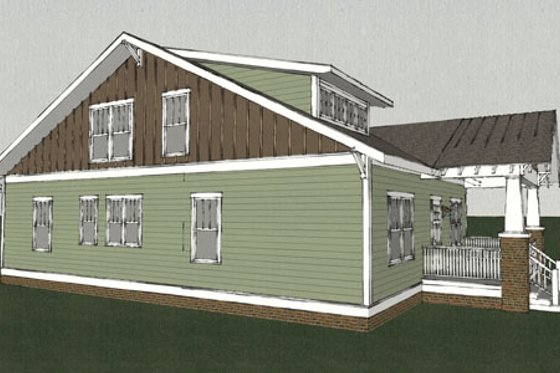

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details.
This plan may have exclusive rights in certain geographic areas
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
“We're taking the complication out of creating energy-efficient Craftsman-style home plans and communities. It's an incremental process that homeowners and builders don't have to be afraid of.” Brooks Ballard founded Home Patterns LLC in 2001. With a Masters in Architecture from Georgia Tech and a Masters in City Design and Social Science from the London School of Economics, he brings a holistic perspective to the design of homes and communities. Experience working with affordable housing experts to produce inexpensive houses that fit into surrounding bungalow neighborhoods lead Brooks to develop reinvigorated Craftsman style home plans that not only reduce the initial carbon footprints, but also work well in infill construction and newer, small-lot developments. It's a "build green" approach. Home widths are based on 4-foot increments for less waste during construction. Bump outs are kept to a minimum because extra corners are expensive, energy-inefficient, and time consuming to build. Roof lines are simple. Less waste and complication means savings that can be put into energy-efficient appliances, solar power, and/or insulation. Smaller but well functioning living spaces mean less energy is needed over the long haul. A smaller footprint means less valuable land is needed. More compact housing encourages walking and mixed use neighborhoods. This translates into healthier living, more freedom of movement and choice, and less reliance on polluting fossil fuels. Brooks' home plan packages allow any builder to construct a first class energy-efficient and sustainable Craftsman-style home that's comparable in price to a "normal home." Energy-efficient, green details are called out separately on our Green Sheets so that a builder can learn incrementally. Think of the plan package as an introduction to sustainable design. The builders can learn and incorporate these details at their own pace while realizing the interconnectedness of each system.
