This roomy Colonial-style plan has a main level that is all living space and all three bedrooms on the upper level. There is a large bonus space above the side entry 2-car garage that also has additional storage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

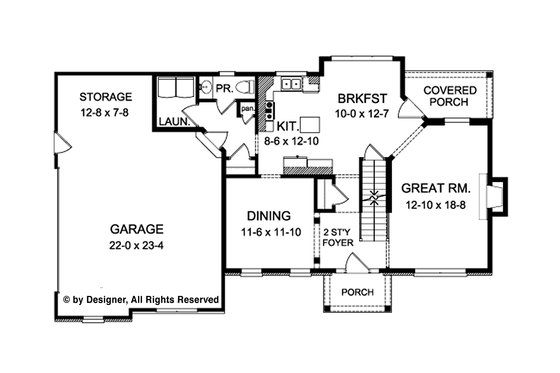

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 32' 4"
Width : 56' 6"
Basement : 993 sq/ft
Bonus : 292 sq/ft
Garage : 600 sq/ft
Main Floor : 993 sq/ft
Porch : 200 sq/ft
Upper Floor : 873 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Tray ceiling in Master Bedroom
Main Ceiling : 9'
Primary Pitch : 9:12
Roof Framing : Combination
Roof Type : Asphalt Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick & Siding
Framing : 2 x 6
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
