Southwest Style Plan 1073-30

Key Specs


Plan Sq Ft

1868
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$185.00
$500.00
$150.00
$39.00
Subtotal
$1145.00
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

1868
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Plan Description


Beat the Desert Heat with this stunning Oasis Retreat featuring 3 Bedrooms, 2.5 Bathrooms, a 3 - 5 car garage and a rooftop terrace to enjoy those breathtaking desert sunsets. A 12’ wide oversize glass sliding door invites you to enjoy dining on the covered patio with a walkway leading to the roof terrace. No expense was spared with the Garage catering to even the most involved DIY mechanic or home-based business. The Kitchen is designed for the chef at heart featuring a 36” wide cooktop and vented hood with double ovens and a spacious Island.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

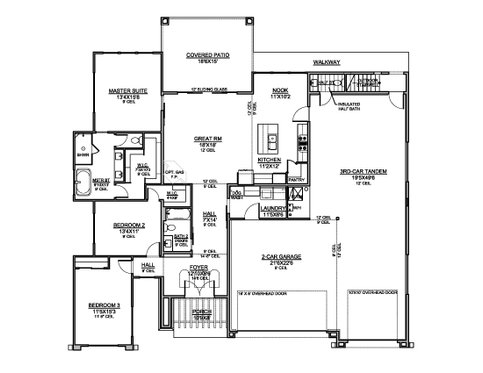

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 1
Garages: 3

Dimension

Depth : 67'
Height : 17' 8"
Width : 67' 6"

Area

Total : 1868 sq/ft
Decks : 839 sq/ft
Garage : 1424 sq/ft
Main Floor : 1868 sq/ft
Patios : 275 sq/ft
Porch : 90 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Foyer has 14'-6" Tall Ceiling, Great Room has 12'-1" Tall Ceiling, 3Rd Car Tandem Garage has 12'-1" Ceiling.
Garage Ceiling : 12' 1"
Main Ceiling : 9' 1"

Roof

Primary Pitch : 0.25:12
Roof Framing : Truss
Roof Load : 30LL / 15DL
Roof Type : Conventional

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2 x 4
Insulation : R15

Bedroom Features

Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Mud Room
Workshop

Garage Features

Front Entry Garage
Oversized Garage
RV Garage
Tandem Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot
Zero Lot Lines

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

More

Additional Half Bath
Economical To Build
Empty Nester
Suited For Vacation Home
Wheelchair Adaptable
