Plan Description


This bungalow design floor plan is 1871 sq ft and has 4 bedrooms and 3.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

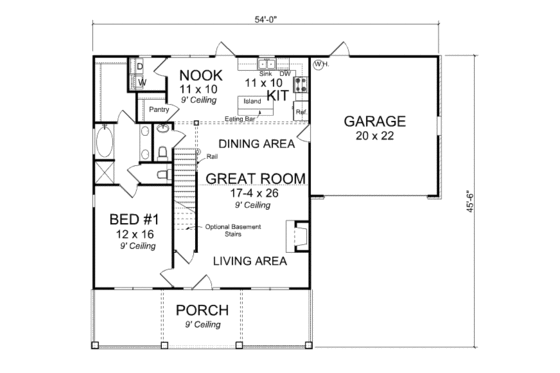

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

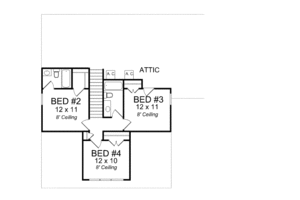

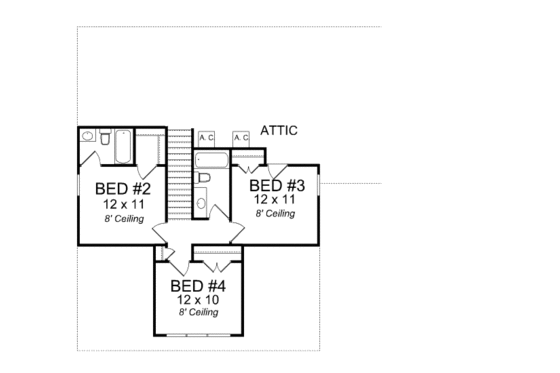

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 45' 6"
Height : 26'
Width : 54'

Area

Total : 1871 sq/ft
First Floor: 1241 sq/ft
Garage: 440 sq/ft
Porch: 272 sq/ft
Second Floor: 630 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 30

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

More

Jack & Jill Bath

Rooms

Bathroom 2:

18 sq/ft width 3' x depth 6'

Bathroom 3:

50 sq/ft width 5' x depth 10'

Bathroom 4:

40 sq/ft width 5' x depth 8'

Bedroom 1:

192 sq/ft width 12' x depth 16'

Bedroom 2:

132 sq/ft width 12' x depth 11'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 4:

120 sq/ft width 12' x depth 10'

Foyer:

22 sq/ft width 3' 8" x depth 6'

Garage:

440 sq/ft width 20' x depth 22'

Great Room:

450 sq/ft width 17' 4" x depth 26'

Kitchen:

110 sq/ft width 11' x depth 10'

Kitchen Island:

16 sq/ft width 5' 6" x depth 3'

Master Bathroom:

90 sq/ft width 9' 4" x depth 9' 8"

Master Closet:

57 sq/ft width 10' 6" x depth 5' 6"

Nook:

110 sq/ft width 11' x depth 10'

Pantry:

22 sq/ft width 4' 8" x depth 4' 10"

Utility Room:

34 sq/ft width 6' x depth 5' 8"

What's included in this plan set


See a sample plan set
  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
* See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$854.25
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1105.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$165.75
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$165.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00
Wood 2x4 Exterior Walls

Wood 2x6

$165.75
Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$165.75
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$140.25
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
