Plan Description


Home on the range—where luxury and livability go hand-in-hand. Rustic details like heavy shutters and beams accent the facade of this Santa Fe classic. Enter the front covered porch to the spacious foyer, which opens at a unique angle to the windowed formal dining room to the right. At the center of the home is the hearth-warmed great room, which flows right into the unique kitchen and bayed breakfast nook—both feature 11-foot ceilings. The left wing of the plan is taken up by the sleeping quarters, including two family bedrooms—each with its own walk-in closet—and a deluxe master suite with rear-porch access.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

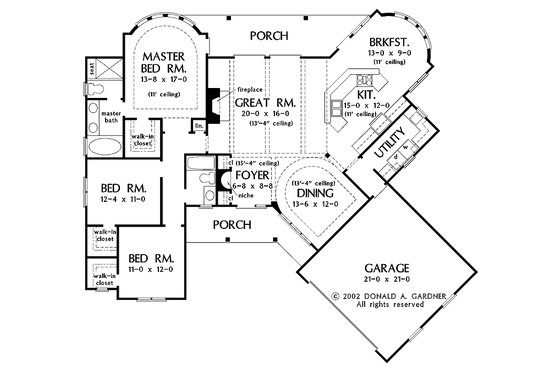

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2
Stories: 1
Garages: 2

Dimension

Depth : 59' 8"
Height : 20'
Width : 66' 2"

Area

Total : 1883 sq/ft
First Floor: 1883 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Combination Truss/Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Split Bedrooms

Additional Room Features

Great Room Living Room

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

3rd BR Closet:

25 sq/ft width 5' x depth 5'

Bathroom 2:

41 sq/ft width 5' x depth 8' 4"

Bedroom 2:

132 sq/ft width 11' x depth 12'

Bedroom 2 Closet:

25 sq/ft width 5' x depth 5'

Bedroom 3:

135 sq/ft width 12' 4" x depth 11'

Bedroom 3 Closet:

25 sq/ft width 5' x depth 5'

Breakfast Room:

127 sq/ft width 13' x depth 9' 10"

Dining Room:

162 sq/ft width 13' 6" x depth 12'

Foyer:

57 sq/ft width 6' 8" x depth 8' 8"

Garage:

441 sq/ft width 21' x depth 21'

Gathering Room:

320 sq/ft width 20' x depth 16'

Hall Closet:

4 sq/ft width 2' x depth 2' 4"

Kitchen:

180 sq/ft width 15' x depth 12'

Master Bathroom:

100 sq/ft width 6' x depth 16' 8"

Master Bedroom:

232 sq/ft width 13' 8" x depth 17'

Master Closet:

37 sq/ft width 6' x depth 6' 4"

Porch - Front:

91 sq/ft width 15' 4" x depth 6'

Porch - Rear:

143 sq/ft width 20' 6" x depth 7'

Porch - Right:

20 sq/ft width 5' 8" x depth 3' 8"

Utility Room:

72 sq/ft width 6' x depth 12'

What's included in this plan set


See a sample plan set


Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

  • Cover Sheet - A rendering of the front exterior of the house.
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
  • Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
