Soft tones, pure lines, noble materials – here is an urban-style two-storey house that combines elegance and functionality. The home is 42 feet 10 inches wide by 37 feet deep, and provides 1,890 square feet of living space. A 338 square-foot one-car garage has a service door to the back of the house.

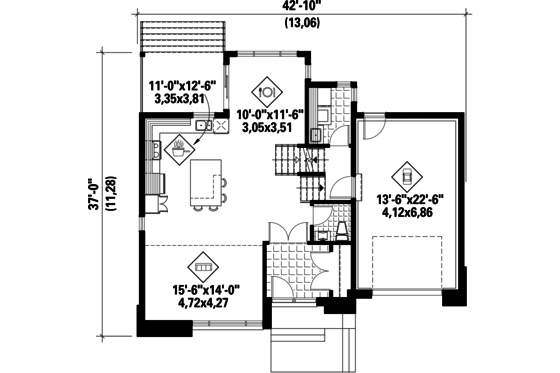

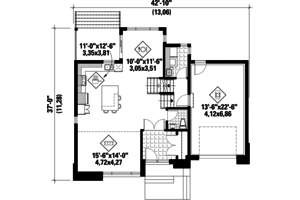

With 865 square feet of living space, the open ground floor includes an entrance hall with a large closet, a powder room and a laundry room with a sink, as well as a double-height living room, and a kitchen with an island located next to the dining room where a patio-door overlooks a covered terrace.

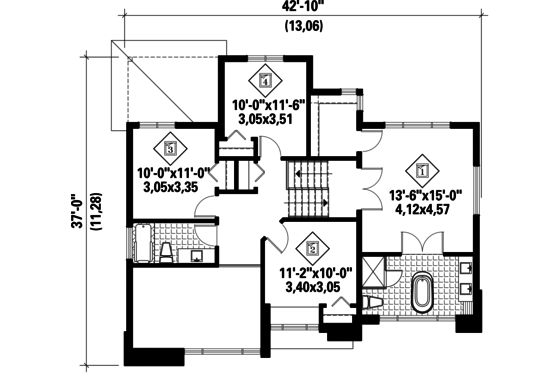

Providing 1,025 square feet of living space, the upper floor features four bedrooms, including a master bedroom located above the garage, with a large walk-in closet and a private bathroom with a freestanding tub, a double-sink vanity and a separate shower. The three other bedrooms are located around the family bathroom. The floor’s hallway overlooks the living room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Full Specs & Features
Depth : 37'
Height : 30' 6"
Basement : 0 sq/ft
Garage : 338 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 865 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Shingle Siding Stone
Framing : Wood - 2 x 6
