This beautiful Acadian house plan is packed with features. This open
split plan has 3 large bedrooms with walk-in closets, 2 large baths,
formal dining room, and luxurious master suite. The great room has a gas
fireplace with raised ceilings and, views to rear and kitchen. The
spacious kitchen offers an island for cooking preparations, built in
pantry, and plenty of cabinets for storage. The luxurious master suite
offers raised ceilings, separate tub and shower, private toilet area,
dual vanities, and a his and hers closet.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

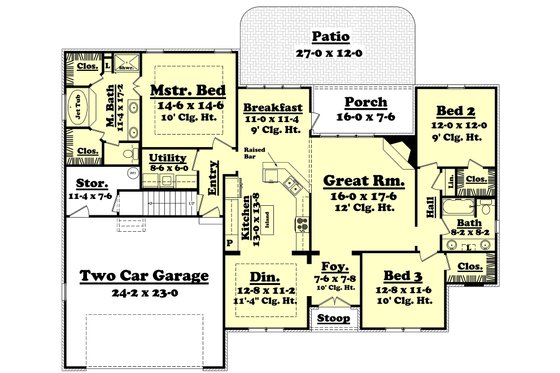

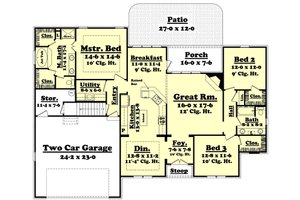

Floor Plan - Main Floor Plan
Floor Plan - Other Floor Plan
Full Specs & Features
Bonus : 395 sq/ft
Garage : 572 sq/ft
Main Floor : 1900 sq/ft
Porch : 147 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bonus Ceiling : 8'
Garage Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 40
Roof Type : hip
Exterior Wall Framing
Exterior Wall Finish : brick
Framing : 2"x4"
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Play Flex Room
Unfinished Future Space
Front Entry Garage
Suited For Corner Lot
Suited For Sloping Lot
Structural Information Provided
Structural Roof Framing
What's included in this plan set
See a sample plan set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
*See important information before purchasing
